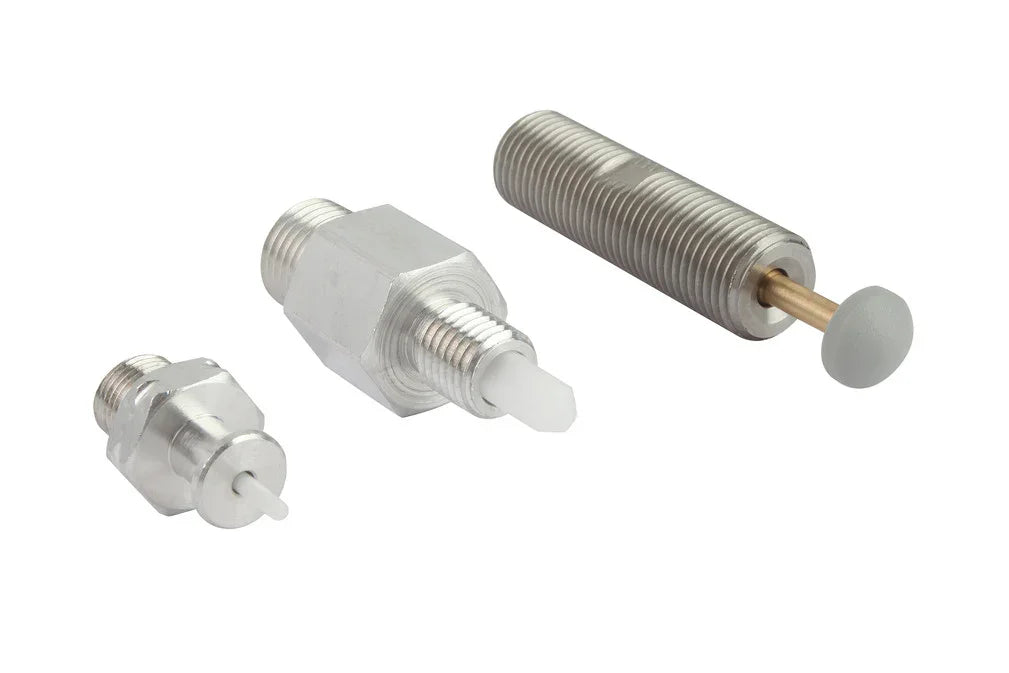

Touch Valves
Valve Technology
Valves are used to control the vacuum as well as the compressed air. The right valves can increase both the process reliability and the cost-effectiveness of the vacuum system.
The sensing valve checks mechanically whether the suction cup is occupied and only then opens the vacuum line.
Choose your option

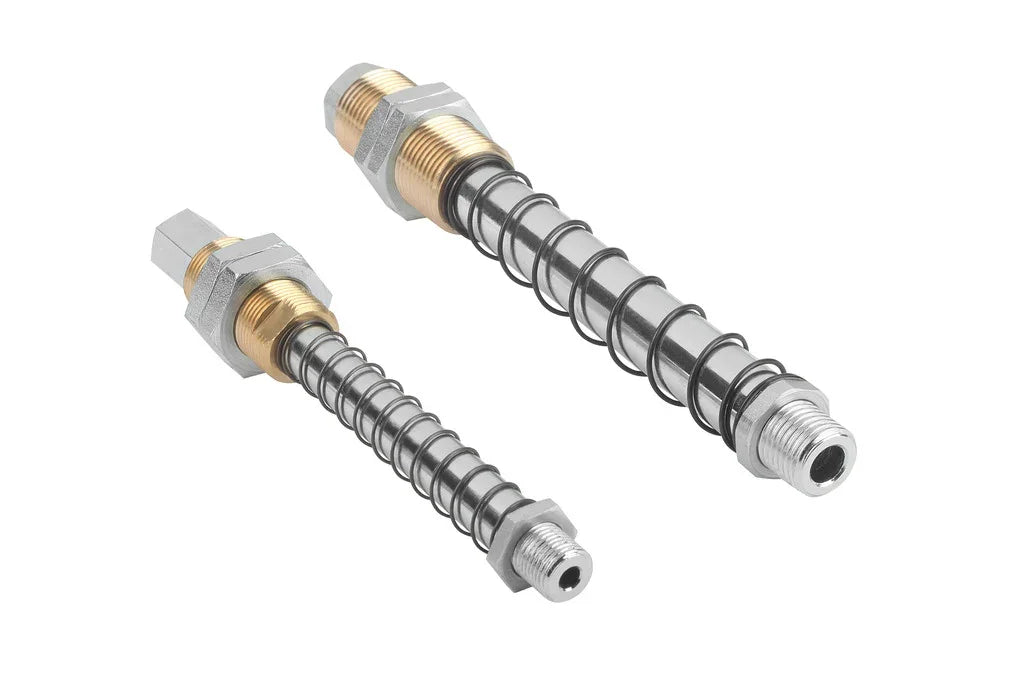

Spring Plungers
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.
The spring plungers - components with versatile tasks: Compensate for overstrokes or height differences, soft touchdown, protect material/surface, etc.
Choose your option
Holders for Suction Cups and Spring Plungers
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.

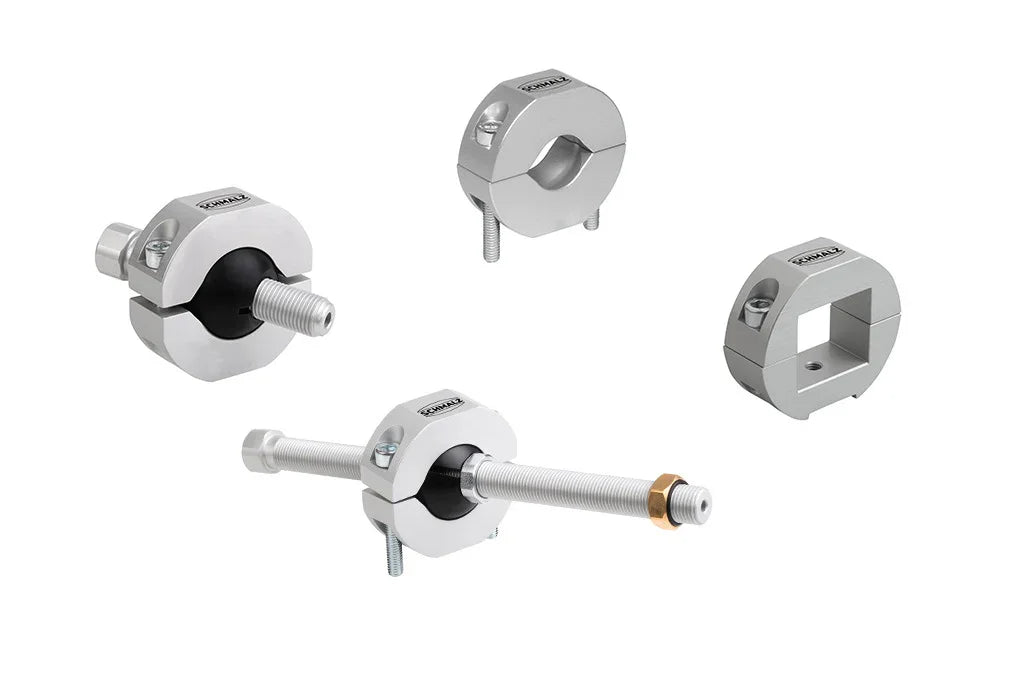

The holder is for suspending the suction cup on the gripping system or robot arm. Different types for aluminum sections or square and round tubes are available.
Choose your option

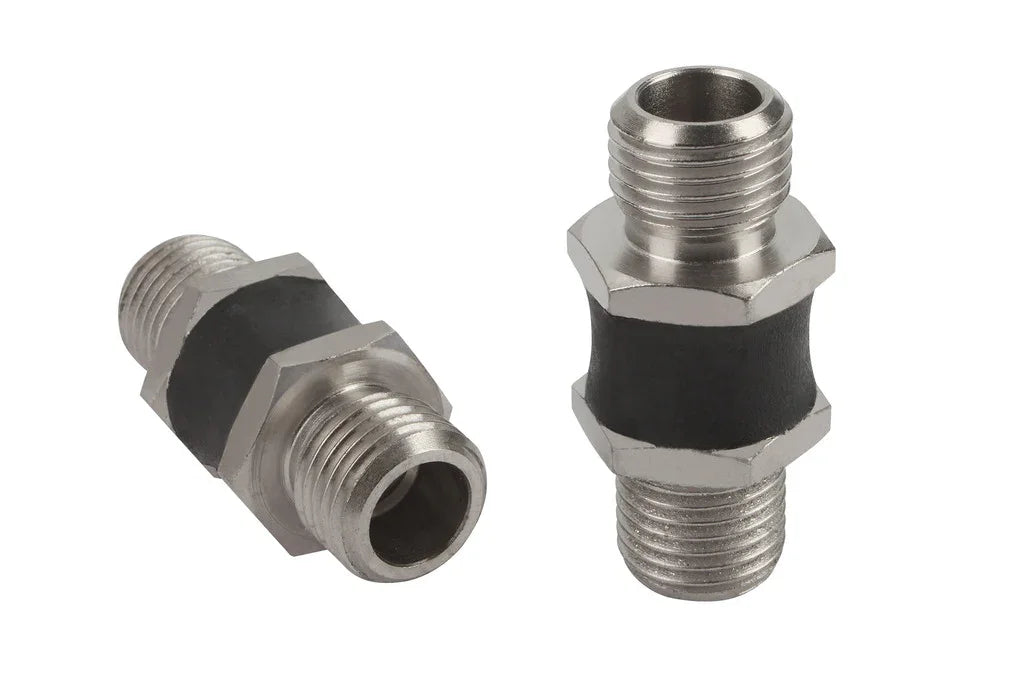

Jointed Mountings
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.
Ball joints and Flexolinks permit the suction cups to adapt themselves better to uneven workpieces.
Choose your option

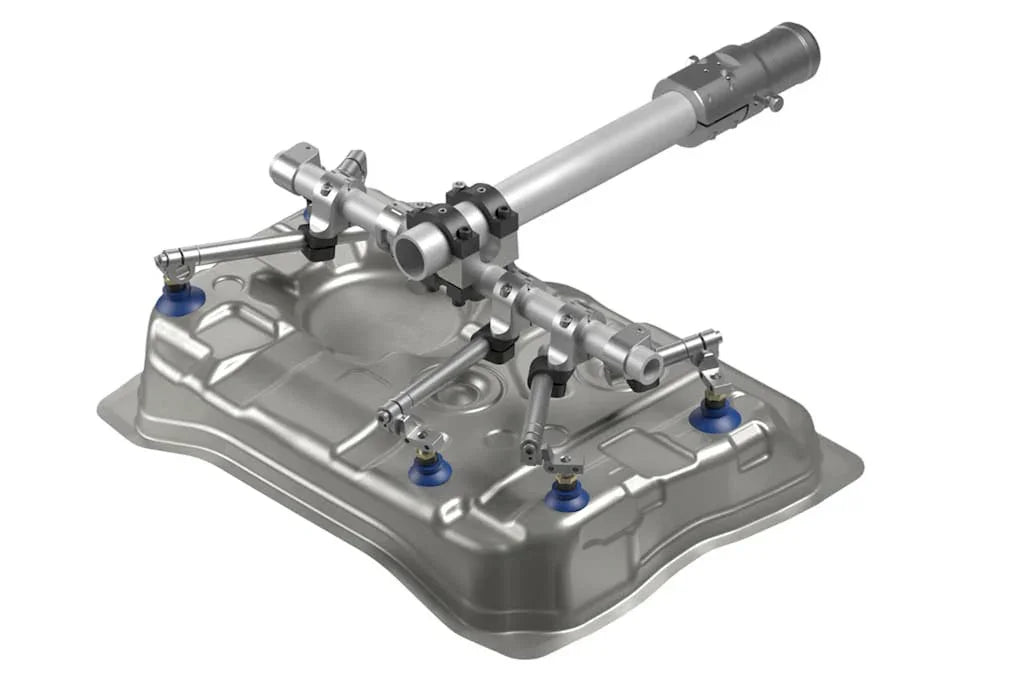

Tooling System SXT
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.
Toolings for robots for destacking, loading and unloading presses and for loading load carriers at the end of the line
Choose your option

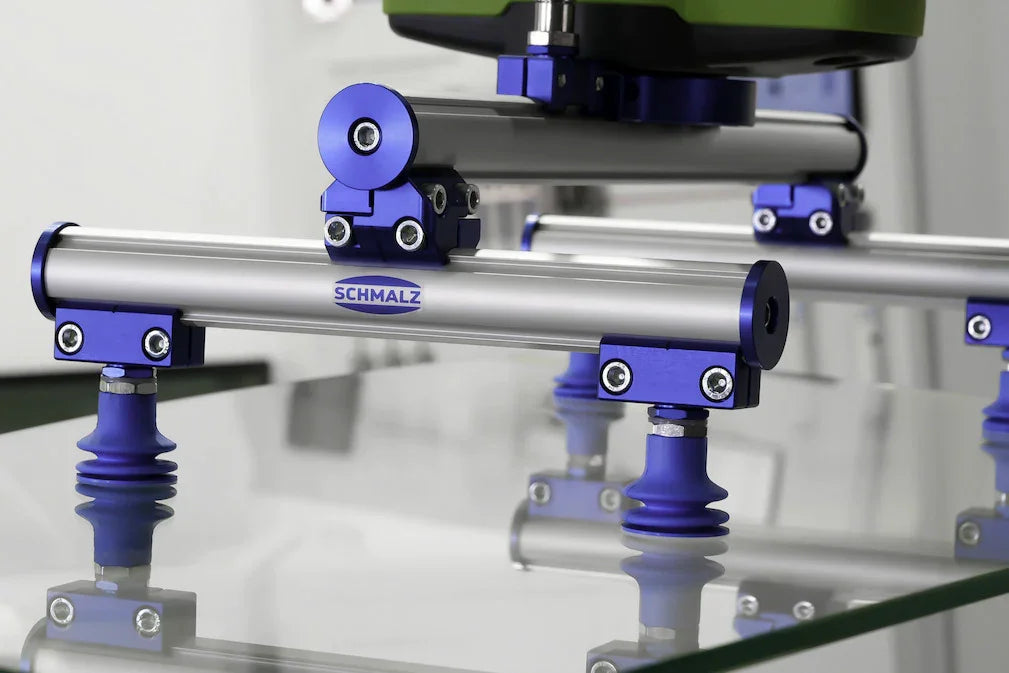

Modular Gripper System PXT
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.
The modular gripping system PXT gives you the flexibility you need to design optimal gripping systems for lightweight robots. You can design solutions for a wide range of handling processes with just a few standardized components. Thanks to the internal vacuum line, your solutions are designed for maximum flexibility and effectiveness. Assembly and conversion are simple, quick and require only a few tools.
Choose your option

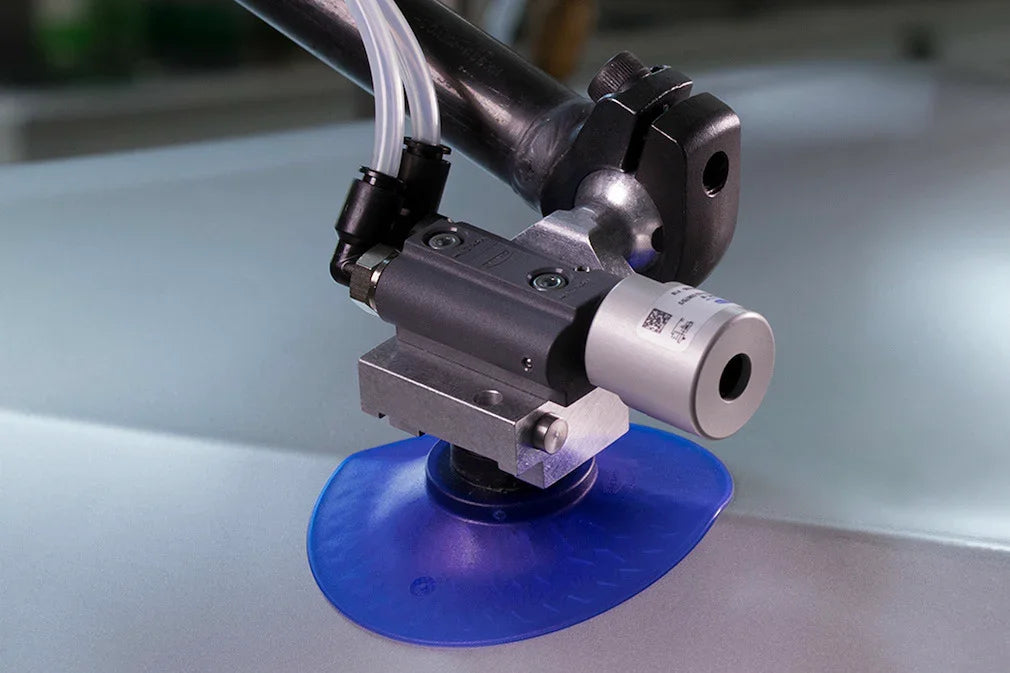

Holder System for Tooling HT
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.
Holder for mounting various Schmalz vacuum components on tooling beams in the press shop and body shop
Choose your option

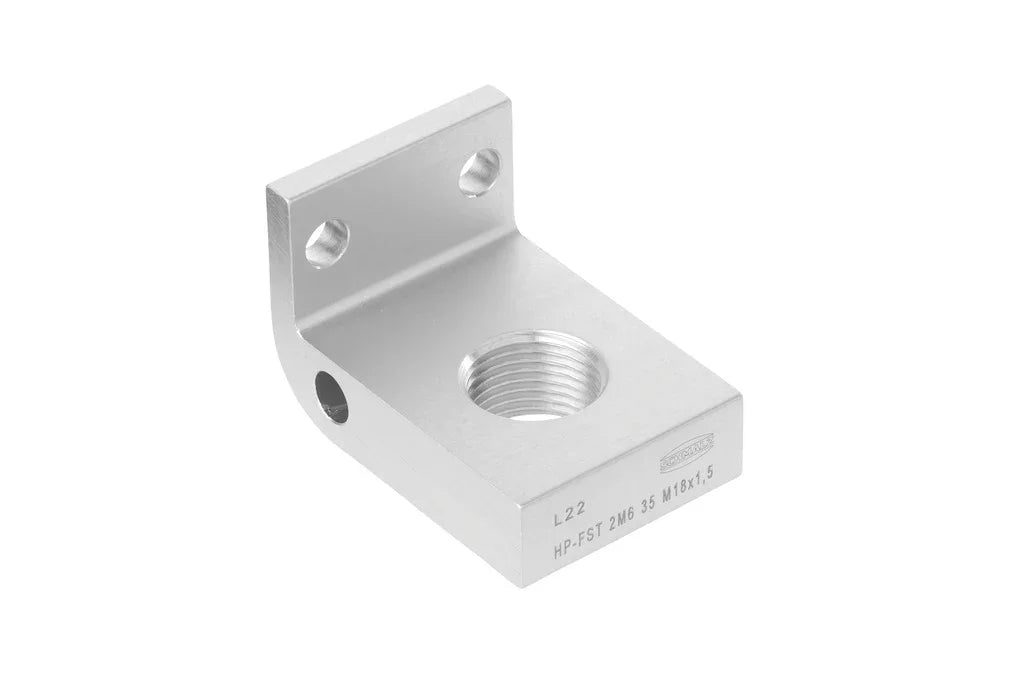

Holder System for Profile with T-Slot HP
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.
The holders for standard slot profiles are suitable for connecting a wide range of Schmalz components. This also allows a flexible vacuum gripper to be set up.
Choose your option
Hose Management Kit HMK
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.

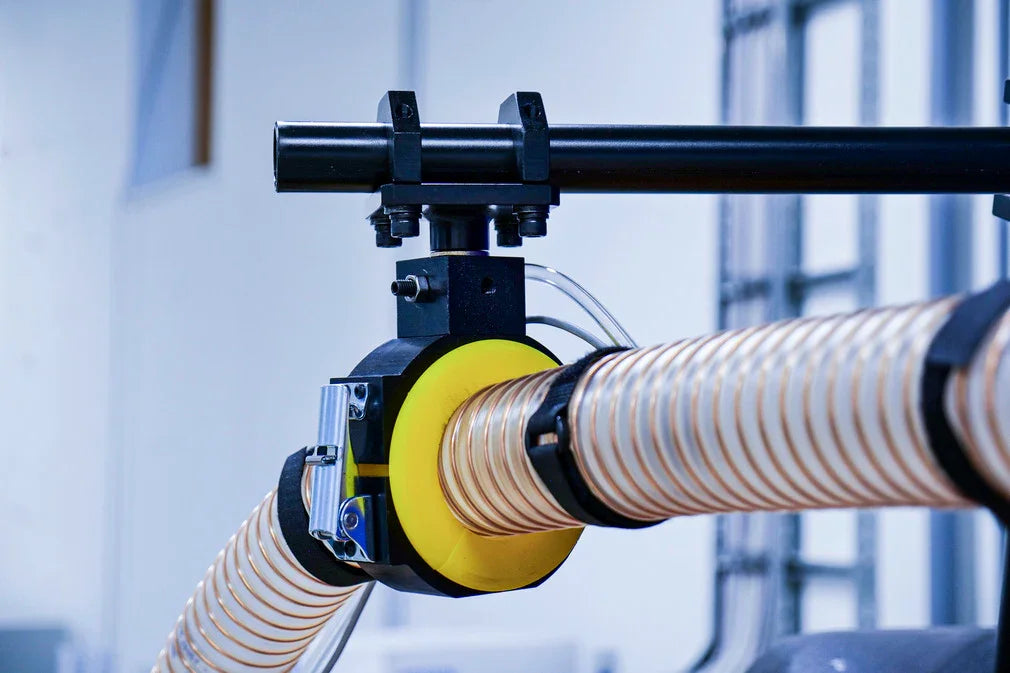

Vacuum gripping system and hose routing from a single source. Schmalz offers you hose guide assemblies or, alternatively, complete vacuum hose management sets. The scope of delivery includes robot-specific adapter brackets and all the hardware for mounting the hose routing assemblies on your robot. Schmalz also offers sets that include the hardware for routing compressed air lines and robot I/O cables to the EOAT.
Choose your option
Suspension Rigid/Flexible Set
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.

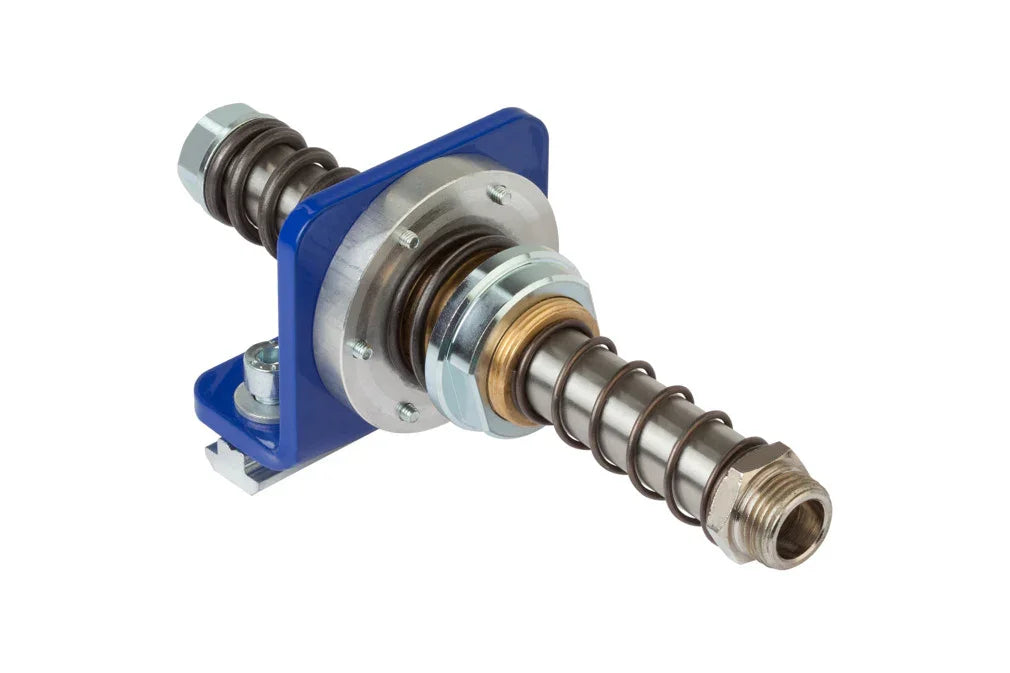

Spring plunger-combination of "fixed and floating bearings" for jam free compensation of height tolerances at suspension of gripping systems.
Choose your option

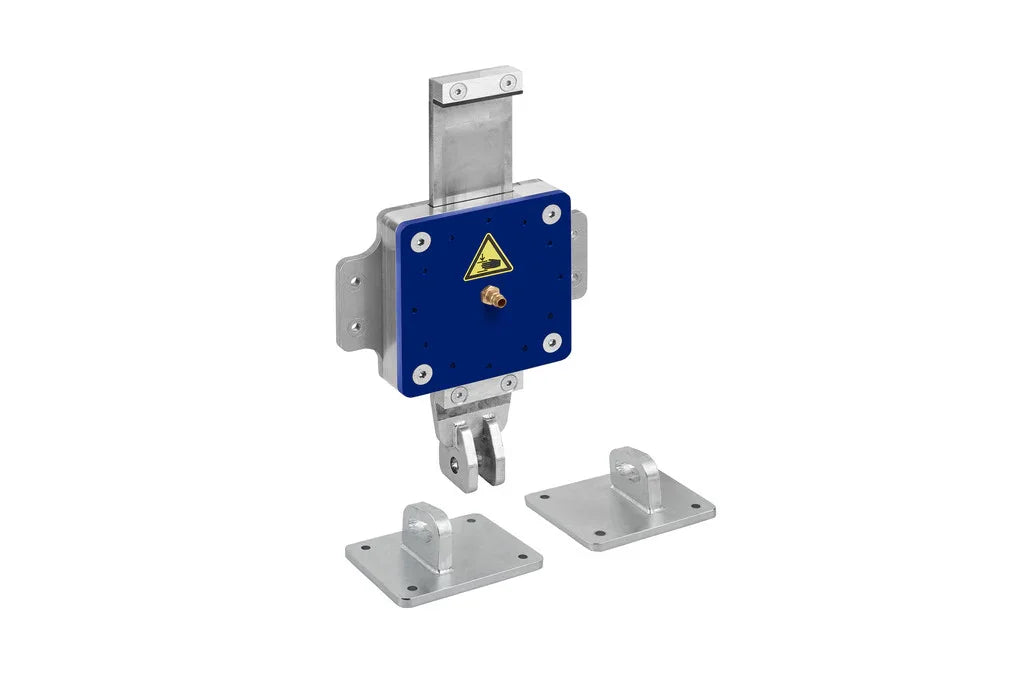

Suspension Clampable FST-C
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.
Clamping suspension unit for area grippers for handling workpiece layers at varying heights.
Choose your option
Sections and Connectors
Mounting Elements
Schmalz offers a wide range of mounting possibilities for integrating suction cups or special grippers into a vacuum system.

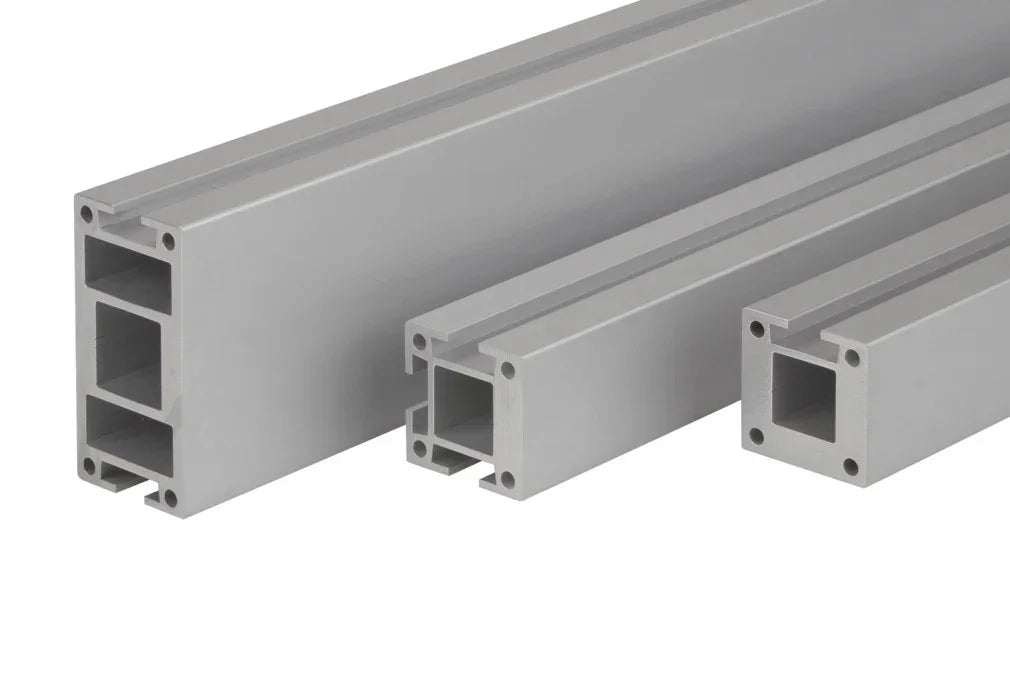

Aluminum sections and accessories form a complete modular system with which customized beams can be constructed.
