Pronal

132T - 4S Air Lifting Bag

4S Air Lifting Bag

Model: 132T

The Air lifting bag from Pronal is an essential tool for rescue operations and industrial maintenance. This device is designed for safe and efficient lifting. It allows for reliable handling of heavy loads, whether in emergencies or maintenance tasks. Moreover, its advanced design ensures optimal performance while maintaining a high level of safety.

Pronal

25T - 4S Air Lifting Bag

4S Air Lifting Bag

Model: 25T

The Air lifting bag from Pronal is an essential tool for rescue operations and industrial maintenance. This device is designed for safe and efficient lifting. It allows for reliable handling of heavy loads, whether in emergencies or maintenance tasks. Moreover, its advanced design ensures optimal performance while maintaining a high level of safety.

Pronal

60T - 4S Air Lifting Bag

4S Air Lifting Bag

Model: 60T

The Air lifting bag from Pronal is an essential tool for rescue operations and industrial maintenance. This device is designed for safe and efficient lifting. It allows for reliable handling of heavy loads, whether in emergencies or maintenance tasks. Moreover, its advanced design ensures optimal performance while maintaining a high level of safety.

Pronal

Air Lifting Bags - Air Lifting Bag for Extracting Block

The air lifting bag is part of the essential equipment dedicated to the extraction of blocks of marble, granite or any other stone. Indeed, its low thickness when empty allows it to be easily inserted in the sawing trenches. Several inflatable cushions are used simultaneously to spread the blocks of stone. They are maintained at a certain level by means of anchoring cables.

In addition, filled with air via a compressor, the quarry airbag spreads the rock evenly. This is followed by overlapping or shifting of the cushions until the stone blocks are tilted.

In the range of air lifting bags dedicated to the extraction of objects, you will also find the high-pressure air lifting bag.

Pronal

Air Lifting Bags - Cylindrical Air Lifting Bag- CLC

The CLC cylindrical air lifting bag can lift, and hold loads up to 12 tons. Among these important loads we find cars, trucks, agricultural machines or small planes.

Its thickness when empty is very low, making it easy to install in small spaces.

Once inflated with air, the inflatable lifting bag takes a cylindrical shape under pressure. This pneumatic cushion offers a significant lifting height up to 1 m high. This air lifting bag is the ideal solution for interventions in rough areas.

The large contact surface of the system allows the lifting force to be distributed over a larger area. The specific accessories for this range allow to secure the inflation pressure up to 1 bar.

For the lifting of larger loads, other air cushions are available, such as high-pressure air lifting bags or stack bags.

Pronal

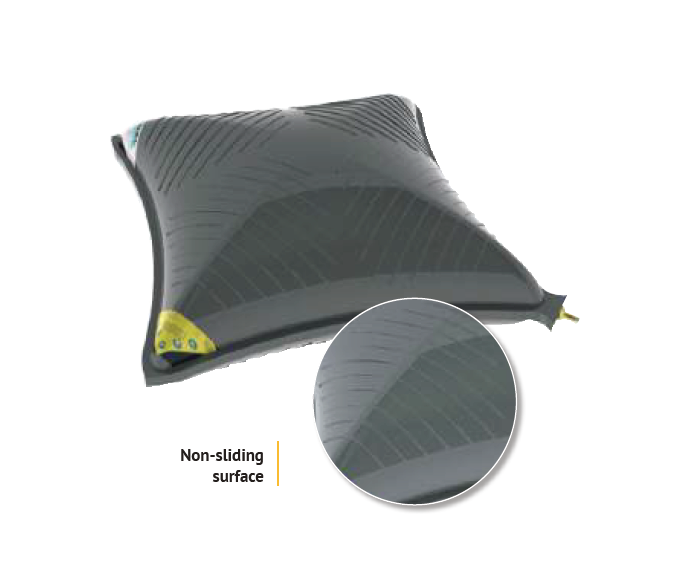

Air Lifting Bags - High-Pressure Air Lifting Bag - CLT

The high-pressure air lifting bag, lifts, wedges and pushes heavy loads mainly horizontally. However, its actions can also be performed vertically, for example for pipe wedging. Depending on the model, the lifting capacity of this pneumatic cushion ranges from 1 to 65 tons. The lifting stroke can be up to 500 mm high.

Pronal

Air Lifting Bags - Low-Pressure Air Lifting Bag - CBP

The CBP low-pressure air lifting bag has a parallelepipedic inflated shape. It allows to lift quickly and at great height any type of load from 1 to 5 tons.

Its dimensions of 25 mm when empty allow it to be installed in narrow passages. Moreover, this lifting system offers a significant lifting height, between 400 and 760 mm, depending on the dimensions.

This low-pressure air lifting bag can be inflated from an air compressor, with a pressure of 0.5 bar. However, it can also be inflated from a vehicle exhaust outlet. Therefore, the system is completely autonomous. Many accessories are available to ensure the pressurization.

Its low weight, its handling handles, and its designed markings facilitate the transport and the installation of the low-pressure air lifting bag. For an even greater stroke, it is possible to superimpose cousins.

Assembled by hot vulcanization, it is resistant to many aggressions: abrasion, friction, nature of the ground, … Indeed, as a real pneumatic jack, the CBP is indispensable on sand, earth or mud. For example, it is an essential tool for removing mud from a vehicle.

In the range of inflatable lifting cushions dedicated to the pneumatic lifting of vehicles, there is also the stack bag or the high-pressure air lifting bag.

Pronal

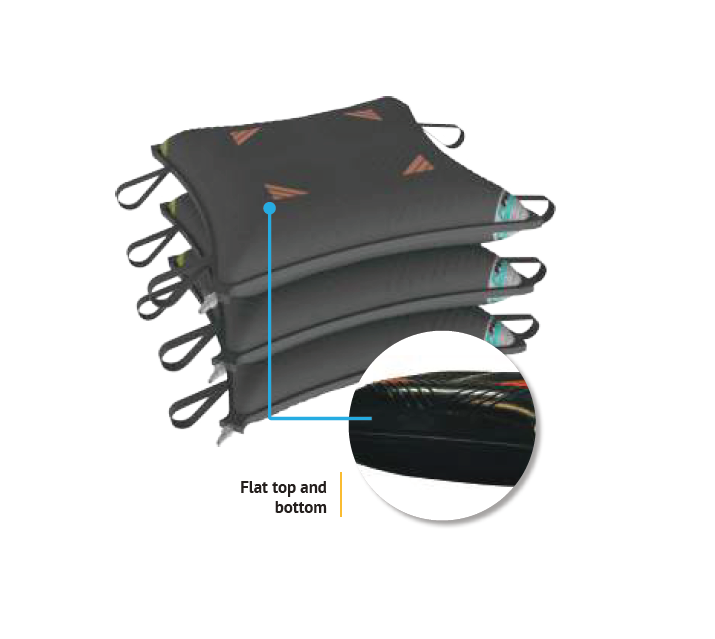

Air Lifting Bags - Stack Bag- CPF

Unlike the other ranges (CLT and CBP), the stack bag has the particularity. This cushion has a flat, non-slip surface. This guarantees the stability of the load. They can be stacked up to 3 cushions to reach a stable and secure lifting height of more than 500 mm. The airbag has a positioning mark to reinforce the safety and use of the product.

Moreover, thanks to its lightness and its low thickness when empty (25 mm), the use of this pneumatic lifting cushion is simple and fast. This stack bag can be used for civil protection, maintenance, industry etc.

The pressurization of the pneumatic lifting systems is controlled by a remote-control box. Thus, the operator can work in complete safety. A valve limits the inflation pressure to 10 bar. We offer a wide range of accessories to meet all customer applications.

The range is composed of 5 models that can lift loads from 30 to 81 tons of thrust.

Pronal

Annular Inflatable Jack

This range of annular inflatable jack is very efficient for isolation, clamping, clamping, pressing and handling applications.

Pronal

Army Fuel Bladder - Dynamic

This army fuel bladder called Dynamic is dedicated to the storage and transportation of fuel or drinking water. It is designed to be mounted on a truck bed. However, for specific needs, you can install it on board aircraft or boats. The tank is equipped with longitudinal skirts and fastening straps. These accessories ensure a quick and easy installation on the platform. Furthermore, the stability of the vehicle is perfectly ensured, even in extreme conditions. The tank is resistant to extreme weather conditions.

Pronal

BASE 40 TON - Aircraft Recovery Lift Bags

Aircraft Recovery Lift Bags

Model: BASE 40 T1

Aircraft Recovery Lift Bags (PARC) are used to lift disabled aircraft in accidents. Aircraft Recovery lift bags are a collection of different inflatable and independent chambers. These inflatable chambers allow any type of aircraft to be lifted without causing secondary damage.

Pronal

BASE 60 TON - Aircraft Recovery Lift Bags

Aircraft Recovery Lift Bags

Model: BASE 60 T1

Aircraft Recovery Lift Bags (PARC) are used to lift disabled aircraft in accidents. Aircraft Recovery lift bags are a collection of different inflatable and independent chambers. These inflatable chambers allow any type of aircraft to be lifted without causing secondary damage.

Pronal

Blivet Army - Helitank

This blivet army, also called Helitank, is perfectly adapted to the transport of fuel or water under helicopters. The slinging is instantaneous; a single ring allows the tank to be hooked under the helicopter. The cross-shaped attachment skirts provide an anti-rotation device for perfect stability in flight. All the advantages of the flexible tank are combined: lightness, flexibility and solidity.

Pronal

Crawl Space Water Storage

This crawl space water storage has the same characteristics as Pronal’s rainwater storage tank: it collects rainwater through the downspouts.

However, it is placed under the house, in the crawl space, hence its name: crawl space water storage. This saves space; it will not take up space on your property. Moreover, it is hidden and does not disturb the landscape.

Pronal

Double Pneumatic Bottle Gripper - MCB

The MCB double pneumatic bottle gripper range is used for long or short neck bottles. Its dual-ring profile means that it can cover a wider range of diameters (12 to 45 mm). It is widely used to avoid changing grippers between two types of bottles. Indeed, only the spacing between the grippers need be changed.

Our range of pneumatic bottle grippers is manufactured in our workshops from NPVC coated fabric and assembled by hot vulcanization in autoclave.

Two lengths are available as standard: 1320 mm and 1460 mm. Nevertheless, thanks to our design office, we can make custom-made products. For example, a food-safe coating can be added on request on the double pneumatic bottle gripper. In addition, depending on your requirements and your pallet loader heads, the inflatable rings will be adapted with reinforcing, a dual air supply, a threaded ring height, etc.

Pronal

Drinking Water Bladder

Pronal has designed a specific range of flexible tanks dedicated to the storage of drinking water: The Drinking Water Bladder. This range was created for the water supply of populations or isolated areas.

Made of fabrics and equipment suitable for human consumption, it is, like our other tanks, manufactured from highly resistant PVC coated fabrics and assembled by high frequency welding.

In addition, this fabric is resistant to extreme weather conditions and keeps the stored water safe from external contamination.

Pronal

Effluent Storage Tank

Pronal’s effluent storage tank is the perfect solution for storing agricultural and industrial effluents. With available volumes ranging from 50 m3 to 500 m3, or even more thanks to the possibility of custom-made tanks, you can store a large quantity of effluent for a long period of time.

This effluent tank is resistant: it is manufactured from PVC coated fabric specific to effluent storage and assembled by high frequency welding. Its highly resistant coated fabric is also compatible with most acidic or basic liquids. These flexible effluent tanks can store:

• leachate,
• liquid manure,
• white and brown water,
• agricultural effluents,
• wine effluents,
• grey water,
• chemical effluents.

Pronal

Emergency Pipe Plug Diameter Greater Than 1000mm - OFR

The OFR is an inflatable emergency pipe plug with a diameter greater than 1000 mm. It has been specially designed to plug pipes with large diameters. The diameter of the pipe defines the inflation pressure. It is dedicated to the reliable and permanent sealing of pipes.

In the event of a disaster, the emergency pipe plug inflates and acts as a valve that retains the polluting products. Once confined, these liquids are pumped or diverted to a retention basin. The sealing balloon thus stops the propagation of chemical products or fire water, eliminating any risk of pollution.

Pronal

Emergency Pipe Plug Diameter Smaller Than 1000mm - OPAP

Sensitive to environmental protection, Pronal has developed an emergency pipe plug called OPAP. It is used for diameters below 1000 mm. For larger diameters, look at the OFR range of emergency pipe plugs.

Pronal

Fertilizer Tank

Pronal’s fertilizer tank is the ideal solution for long or medium term storage of liquid nitrogen/sulfur fertilizers. Meeting your expectations, this tank is equipped with fittings and valves for an optimized filling and emptying. Made to measure, the filling and emptying can be placed on the sides or on the bottom.

The closed tank controls the strong odors which can emanate from fertilizers. Moreover, the stored fertilizers will be protected from the rain. Therefore, they will keep their real volume and will not be dissolved by rain. This will allow them to keep their purity and efficiency.

Pronal

Fire Fighting Water Tank

Made of highly resistant PVC coated fabric (1300 gr/m2) and assembled by high frequency welding. This fabric resists any temperature from -30°C to +70°C.

This flexible solution is offered in three different systems:

• With a direct-acting valve
• With a frost-free buried system in Esse,
• And with a suction post.

Pronal

Flexitank Container - LCI

The LCI Flexitank container is dedicated to the storage and transportation of liquids. They are transported in international standard ISO 20′ or 40′ type containers. Also, it can be used in truck trailers and containers up to 40 feet. These flexible tanks can store:

• Raw or drinking water
• Industrial oils
• Food oils
• Hydrocarbons
• alcohol…

The tank hugs the inner walls of the container, while ensuring the storage functions inside it. Thanks to its manufacture and its high-quality materials, this storage system will be able to carry out many liquid transports.

Pronal

Fuel Bladder

The flexible fuel tank can be used to create main or secondary fuel depots. It allows to ensure the continuity of the petroleum chain at many levels such as

• Storage of jet fuel for aircraft or land vehicles refueling,
• The supply of diesel to power plants,
• Fuel supply for mining vehicles,
• The supply of fuel for generators.

Pronal

Fuel Bolted Tank - RAM

The RAM fuel bolted tank is a bolted hydrocarbon storage tank. With a cylindrical shape and a fixed roof, it ensures the storage of all types of fuel (diesel, jet, fuel oil) for oil depots. The RAM is a hybrid tank. Indeed, it has the advantages of conventional steel tanks coupled with the advantages of the flexible tank:

• Ease of transport in difficult access areas,
• Quick implementation and dismantling,
• Compatibility of the membrane (liner) with most hydrocarbons,
• Modularity of the accessories.

The RAM fuel bolted tank is composed of:

• A metal structure made of sheets bolted together,
• A roof made of a cladding, beams, and a PVC liner guaranteeing watertightness,
• An internal hot-vulcanized liner made of elastomer reinforced with textile fibres for storage,
• Accessories allowing unloading/potting, level measurement, sampling and fire fighting.

Pronal

Gas Holder

Pronal’s gas holder is an independent external storage. It allows the storage of gas with an optimal gas tightness. Indeed, this product is composed of an elastomer membrane with a specific textile coating.

It can store several types of gasses such as CH4, H2, CO2 and others. It ensures their conditioning and mixing.

The gas holder can be used for several activities:

• Hydrogen production by electrolysis
• Production of syngas by pyrolysis
• Recovery of non-condensed gases by pyrolysis
• Anaerobic digestion
• Methanation

According to the needs and applications, we can provide different types of gas holders for indoor and outdoor environments. Indeed, the gas holder is adaptable to containers and restricted environments.

Depending on the gas tightness required, Pronal can apply a specific coating limiting the escape of gas.

Pronal has specialized teams in field intervention to supervise the installation of the gasometer. Please inquire about these services.

Pronal

Half Pneumatic Bottle Gripper - MDG

The range of MDG half pneumatic bottle gripper is dedicated to gripping rows of bottles, carafe type bottles or ones with a wide neck diameter. For this type of bottle, there is also the range of double pneumatic bottle gripper.

Two grippers are needed to grip a row of bottles. A link part is used to maintain the spacing between the two grippers. In addition, the half pneumatic bottle gripper offers an evenly distributed thrust.

Two lengths are available as standard: 1320 mm and 1460 mm. Other dimensions can be produced in line with the pallet layout diagram.

A food-safe coating can be added on request. Depending on your installation requirements, other options may be added to the inflatable rings such as reinforcing, a dual compressed air supply, a threaded rod height, etc.

Pronal

High pressure inflatable pipe plugs - OHP/OPV

High pressure inflatable pipe plugs “OHP & OPV” can plug all types of pipelines (Concrete, steel, HDPE, stainless steel…). They have been designed to withstand strong back pressures of up to 35 bars and even more on request.

Pronal

Inflatable Jack for Transformer Winding - VTR

The VTR inflatable jacks allow the adjustment of the height of the windings of the transformers. Indeed, during the assembly of the transformer, and at the end of the winding drying phase, it is sometimes necessary to adjust the height of the windings.

When they are empty, the lifting bags are thin and flexible. It is then very easy to slide them between the windings. Once inflated with air, they gently lift the coil without deforming it. The operator can insert or remove the shims to adjust the height of the coil.

This transformer winding adjustment system is an alternative to the traditional hammer wedge. It not only saves time but also prevents damage to the coil.

Pronal

Inflatable Jacks

Inflatable Jacks are the ideal solution for applications that require a high lifting force to be applied at a defined height. This lifting bag has a lifting capacity of up to several dozen tons. Moreover, it can be inflated with air, water or oil. Pronal can produce special inflatable jacks with custom-made dimensions, resulting in specially shaped flexible cylinders.

Pronal

Inflatable Pipe Plug - Diaphragm Closure

Pronal diaphragms closure are flexible inflatable jacks. These jacks are installed in the legs of offshore platforms and assist the buoyancy of the fixed platform, while also maintaining its center of gravity when it is installed at sea.

Pronal

Inflatable Platform Gap Filler

Pronal's inflatable platform gap filler is an inflatable solution integrated into the roof access gangways of all types of vehicles: train, bus, metro, tramway, or plane. Once inflated, it fills the gap between the vehicle and the gangway during maintenance and/or vehicle manufacture. Thus it ensures the safety of the agents by preventing the fall of people and tools.

Pronal

Inflatable Seal

The inflatable seal is a product whose main application is sealing. Made from plastomer material and welded by high frequency, this product ensures the sealing between a hopper and the sleeve of a big bag.

Pronal

Inflatable Stoppers for Testing Bouvier Darling Valves

The primary circuits in nuclear power plants are equipped with swing type check valves. The ASN has determined the frequency that the tightness of these swing valves must be tested.

Pronal

Inflatable System for GSS Hydraulic Testing

Pronal has designed an inflatable stopper system for implementing hydraulic tests on superheater dryer units (GSS).

Pronal

Inflatable Trench Shield - Smartshore

Model: 2230x1420

Pronal’s Inflatable Trench Shield Smartshore ensures worker safety during trenching or excavation works. It is a key tool to protect them from crumbling. These systems use two inflatable cushions that once inflated are held in place by braces. These cushions can reinforce trench walls up to 2m deep. For trenches less than 1.30m deep, the terrain density and ground consistency need to be taken into account. This is why Smartshore cushions can be used horizontally in these situations. Inflatable trench shield systems can be folded up and reused.

Pronal

JBQ 1000 - Inflatable Formwork- JB Qualifix®

Inflatable Formwork- JB Qualifix®

Model: JBQ 1000

The JB QUALIFIX® is an inflatable manhole formwork. It is an alternative to heavy wooden or metal formwork. This solution is used for sealing cylindrical manholes. The JB QUALIFIX® acts like a standard manhole formwork. The operators slide the deflated tube into the manhole. Using a small compressor, they inflate it until the solution fits the entire wall for a perfect seal. Once inflated, the operators can pour the concrete all around, without dirtying the manhole. The use of this solution provides a better-quality manhole seal that will last over time.
