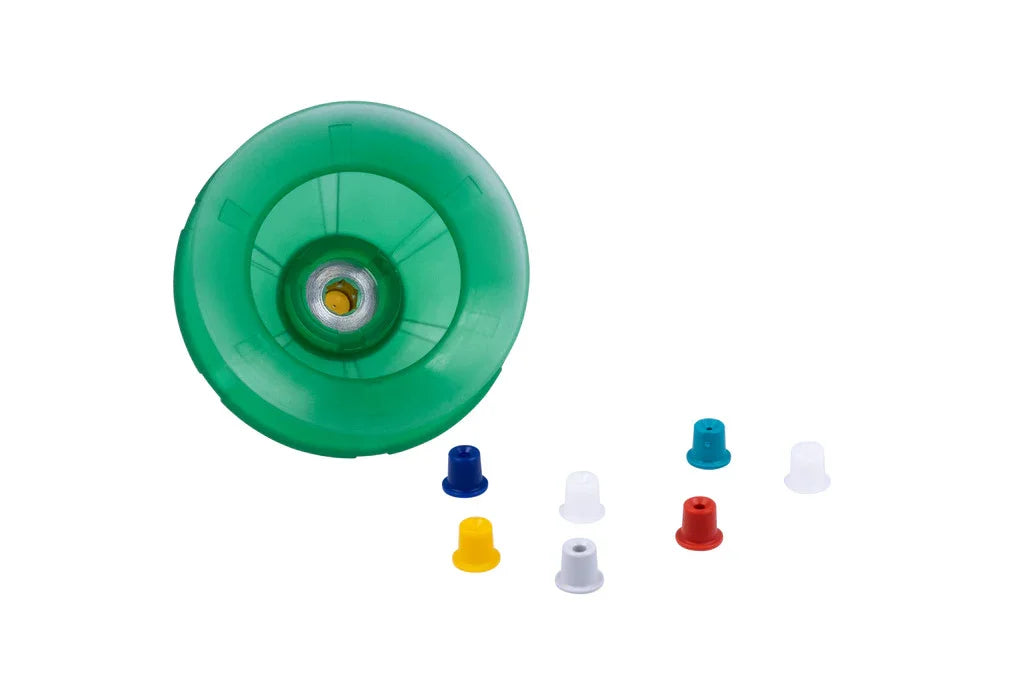

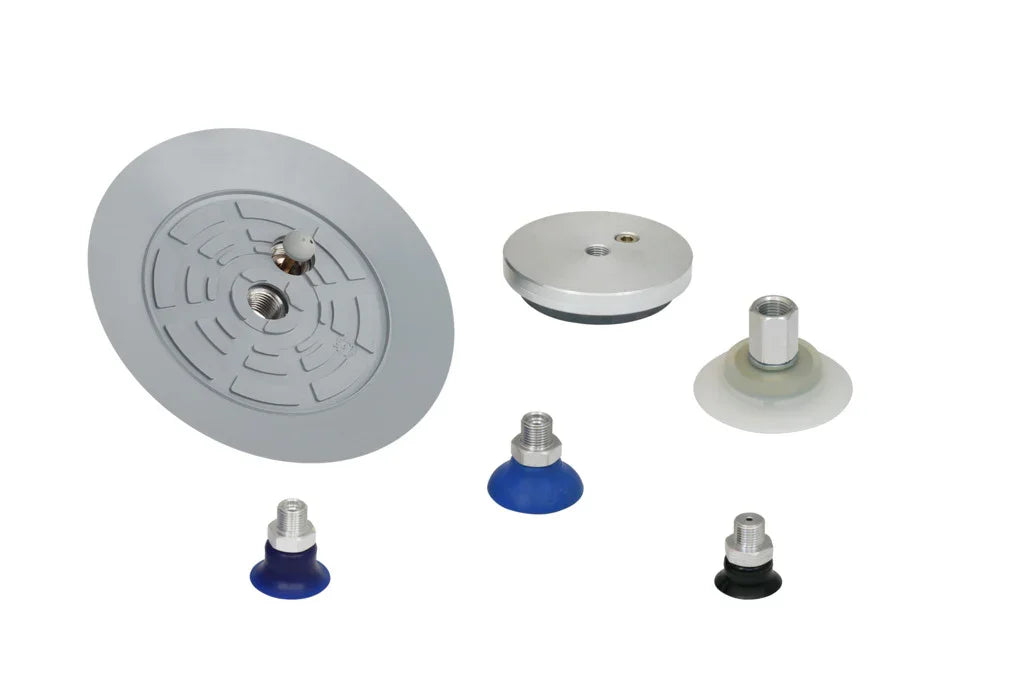

Accessories Vacuum Suction Cups
Vacuum Suction Cups
Suction cups and suction plates for handling flat, smooth workpieces such as glass which depend on high lateral forces. Bellow suction cups for gentle handling of, for example, automotive glass as well as handling of visible parts made of glass while leaving few marks.
The effectiveness of the suction cup can be increased with accessory parts. Suction cup inserts and covers ensure mark free gripping of the workpieces.
Choose your option
Area Gripping Systems FMHD
Area Gripping Systems and End Effectors
Area gripping systems and end effectors are gripping systems that can be attached directly on the robot.
The area gripping system FMHD can be integrated into systems quickly and efficiently and is equipped with a connection for external vacuum generation. Due to its integrated vacuum reservoir and robust, easy-to-maintain design, this gripper is particularly well suited to performing handling tasks under demanding environmental conditions. In addition, these grippers are ideal for operation with industrial robots and gantries due to their low weight and compact dimensions.
Choose your option
Area Gripping Systems FQE
Area Gripping Systems and End Effectors
Area gripping systems and end effectors are gripping systems that can be attached directly on the robot.
Configurable universal gripper with integrated or external vacuum generation for handling workpieces, e.g. in intralogistics
Choose your option
Area Gripping Systems FXCB / FMCB
Area Gripping Systems and End Effectors
Area gripping systems and end effectors are gripping systems that can be attached directly on the robot.
The area gripping system FXCB/FMCB is ideal for stationary handling tasks with collaborative robots. It is suitable for handling workpieces regardless of size and geometry. The area gripping system is equipped with an integrated pneumatic vacuum generation. Its extremely low weight and rounded shape make this gripper particularly well suited for HRC operation (Human-Robot-Collaboration). Thanks to the innovative product design featuring increased contact surface and reduced impact forces, the gripper fulfills the requirements of ISO TS 15066 (Safety standards for collaborative industrial robot systems).
Choose your option

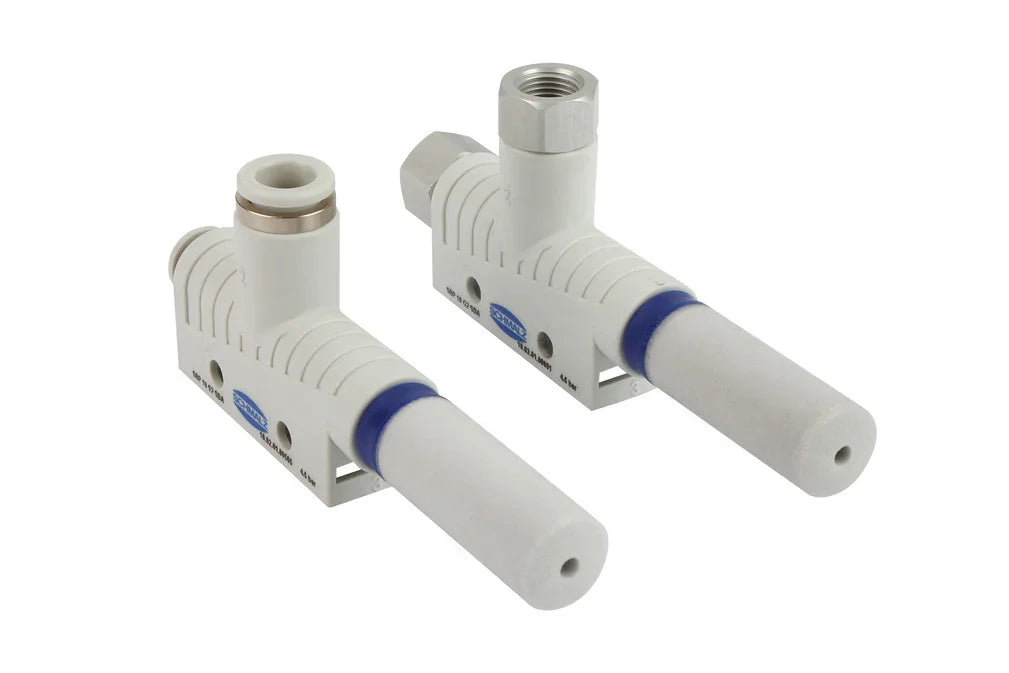

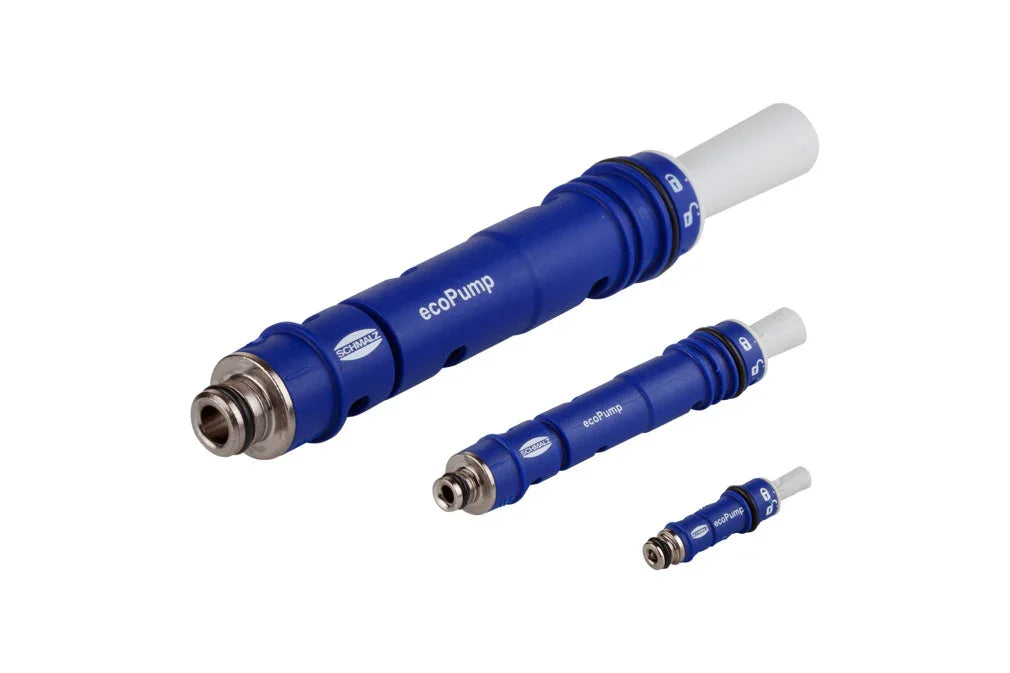

Basic Ejectors
Vacuum Generators
Vacuum generators provide the required vacuum. The vacuum is generated either pneumatically (ejectors) or electrically (pumps, blowers).
Due to their small size, the basic ejectors can be used even in confined spaces. Due to the simple design with main body, venturi nozzle and silencer, this ejector is low maintenance and wear-resistant. The ejector's lightweight build makes it particularly suited for use in highly dynamic processes.
Choose your option

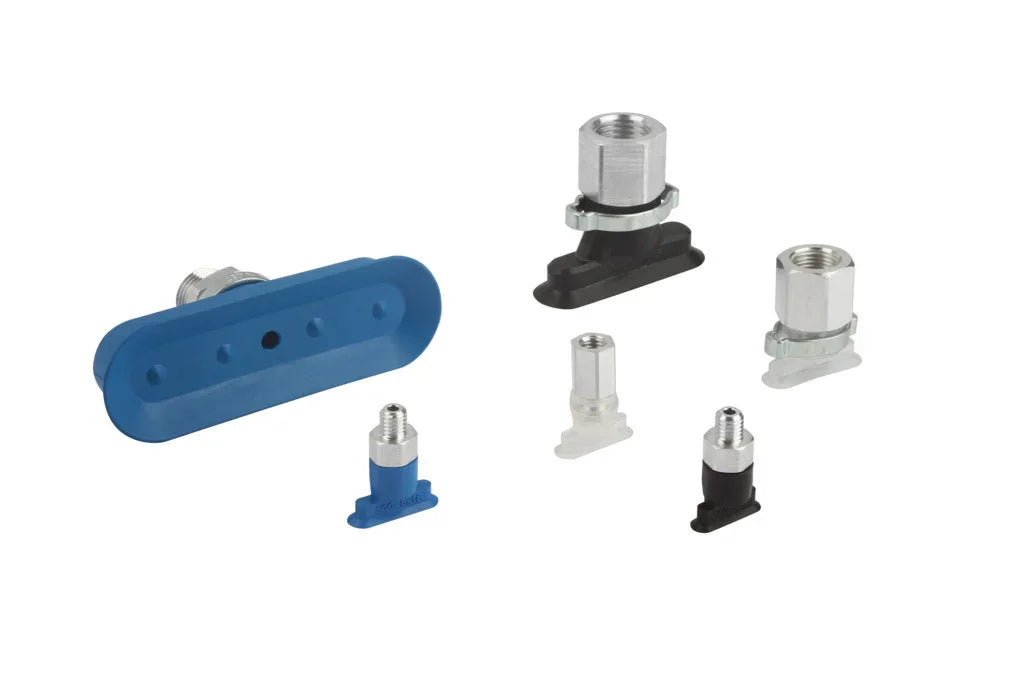

Bellows Suction Cups (Oval)
Vacuum Suction Cups
Schmalz product range includes a variety of suction cups with various shapes, sizes and materials, providing the right suction cup for every application. Suction cups consist of a elastomer part and a connection nipple. Please call if you require help making a selection.
Bellows suction cups with an oval shape are designed for long and narrow workpieces. Bellows suction cups are used if you need to handle workpieces with different heights, uneven surfaces or even fragile parts.
Choose your option

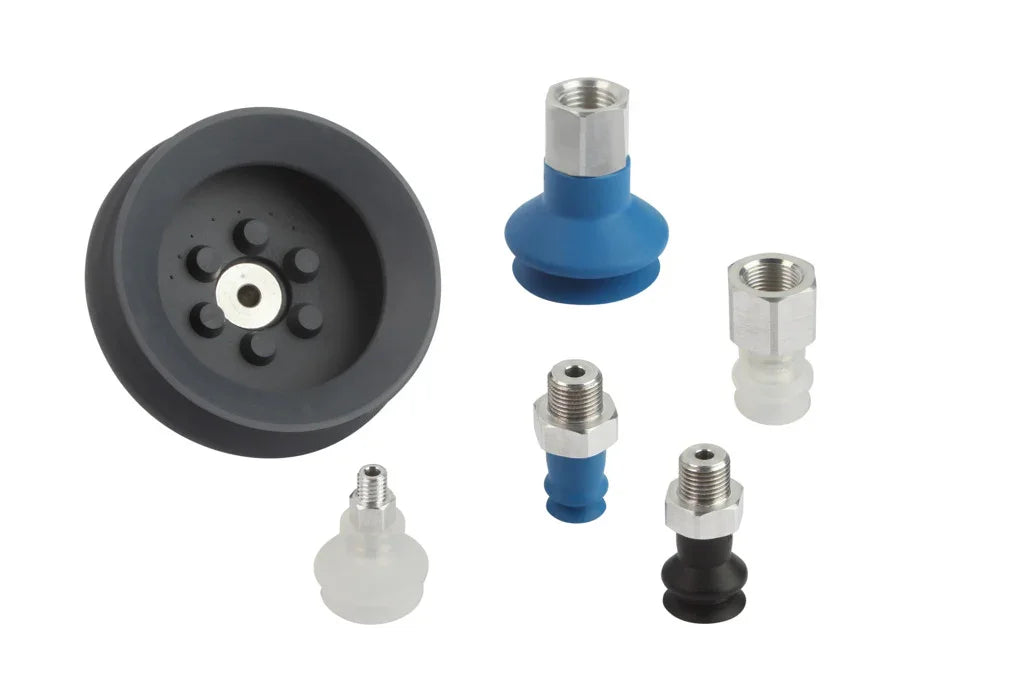

Bellows Suction Cups (Round)
Vacuum Suction Cups
Schmalz product range includes a variety of suction cups with various shapes, sizes and materials, providing the right suction cup for every application. Suction cups consist of a elastomer part and a connection nipple. Please call if you require help making a selection.
Bellows suction cups with a round shape are particularly suited for handling uneven and arched workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
Choose your option
Bin Picker SBPG
Area Gripping Systems and End Effectors
Area gripping systems and end effectors are gripping systems that can be attached directly on the robot.
Ready-to-connect vacuum gripper for automated bin picking
Choose your option

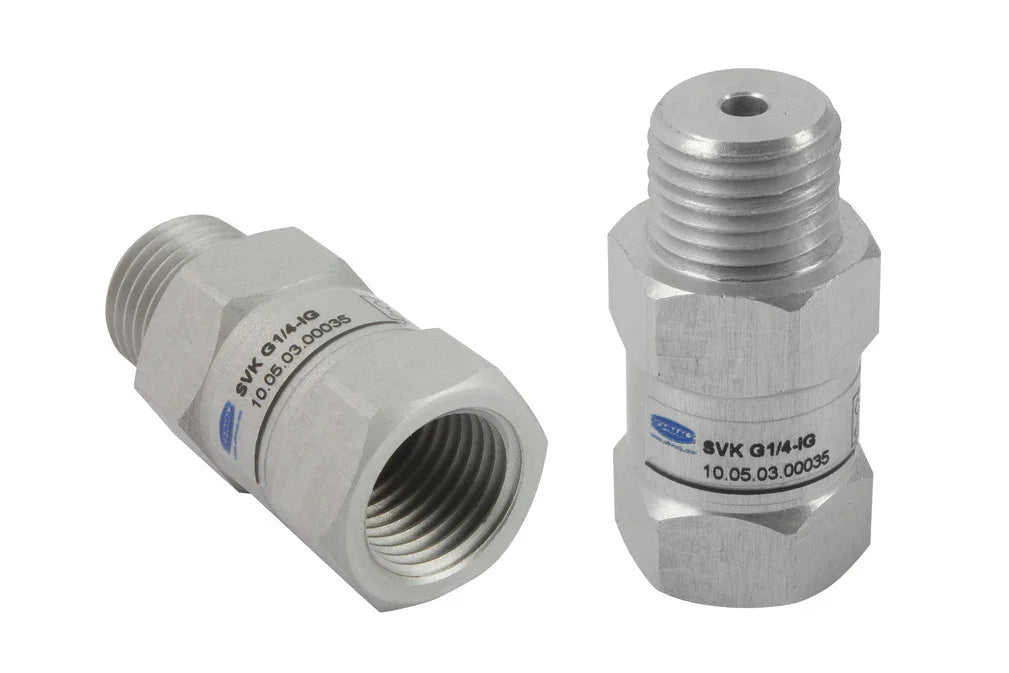

Check Valves and Flow Restrictors
Valve Technology
Valves are used to control the vacuum as well as the compressed air. The right valves can increase both the process reliability and the cost-effectiveness of the vacuum system.
Check valves close the vacuum lines of uncovered suction cups. This maintains the system vacuum. Flow restrictors constrict the vacuum line. They are used predominantly in the handling of porous parts.
Choose your option

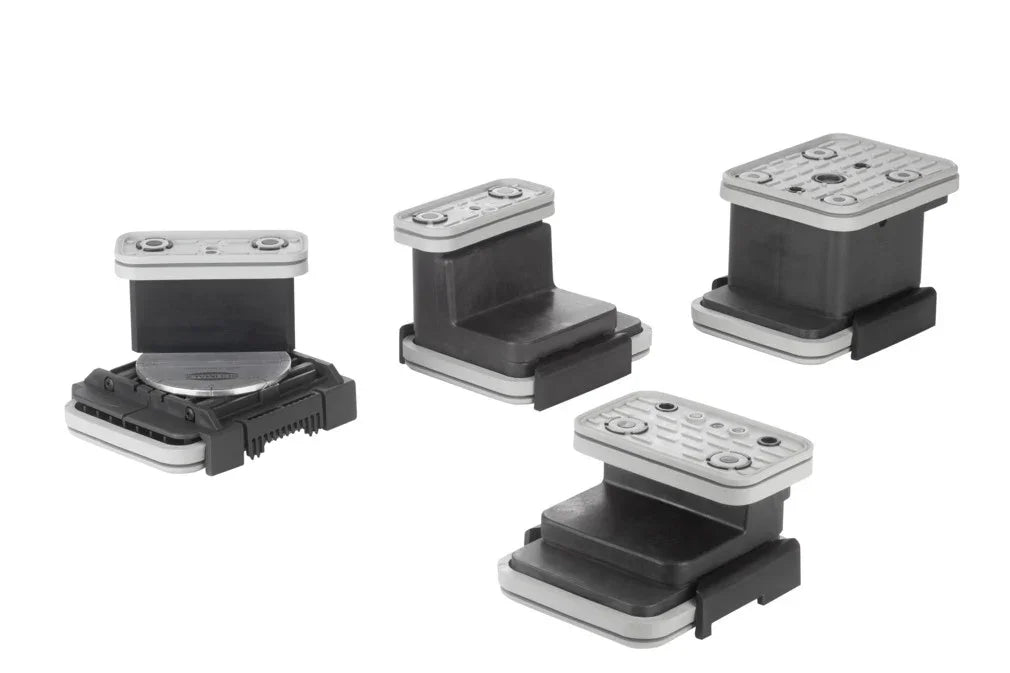

Clamping Equipment for 1-Circuit Systems
Clamping for Woodworking
Vacuum clamping technology for wood processing is essential for efficiently setting up console table, grid table, nesting table and flat table systems.
Whether using a 1-circuit or 2-circuit system, panel processing or frame production – console vacuum blocks from Schmalz can be positioned precisely and are quick and easy to replace when changing the order.
Choose your option

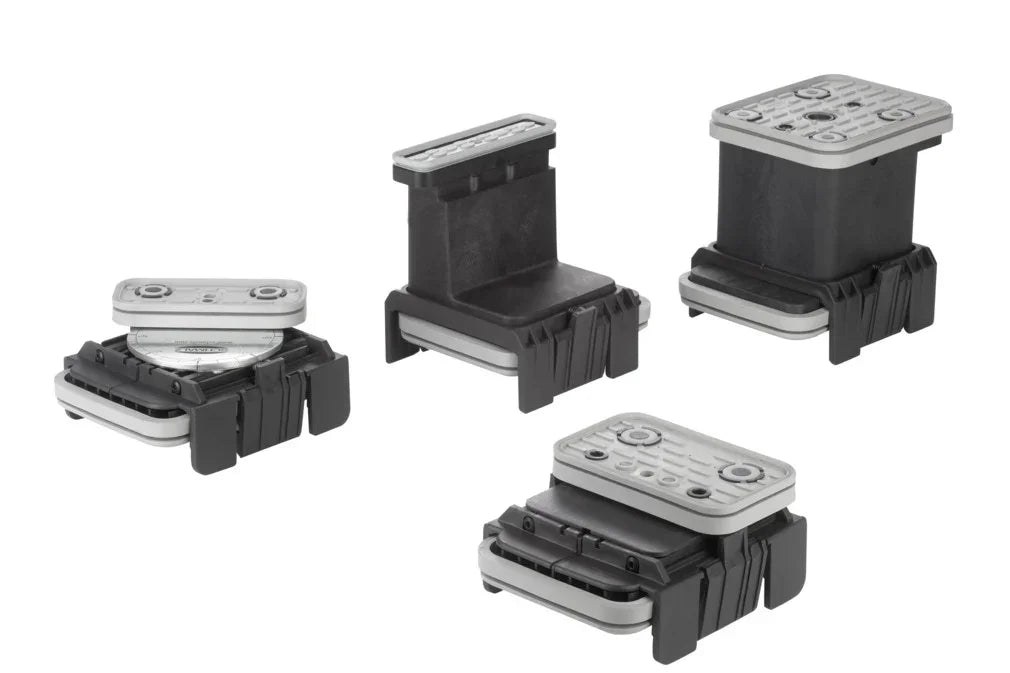

Clamping Equipment for 2-Circuit Systems
Clamping for Woodworking
Vacuum clamping technology for wood processing is essential for efficiently setting up console table, grid table, nesting table and flat table systems.
Whether using a 1-circuit or 2-circuit system, panel processing or frame production – console vacuum blocks from Schmalz can be positioned precisely and are quick and easy to replace when changing the order.
Choose your option
Clamping Equipment for Flat Table Systems
Clamping for Woodworking
Vacuum clamping technology for wood processing is essential for efficiently setting up console table, grid table, nesting table and flat table systems.
Schmalz clamping solutions enable the quick and uncomplicated setup of CNC machining centers with flat table.
Choose your option

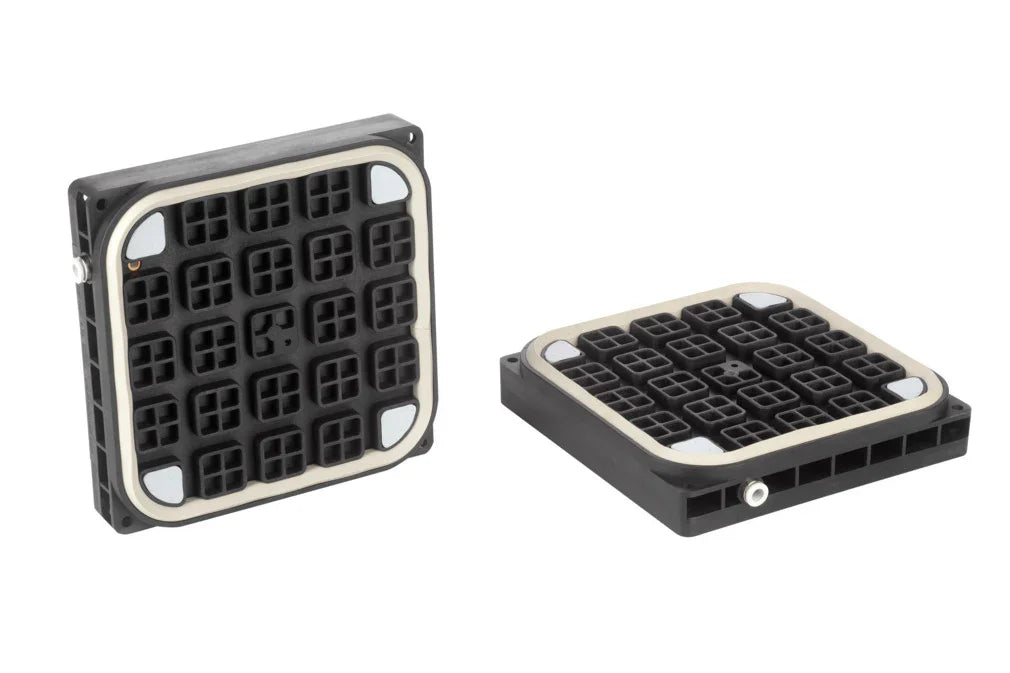

Clamping Equipment for Grid Table Systems
Clamping for Woodworking
Vacuum clamping technology for wood processing is essential for efficiently setting up console table, grid table, nesting table and flat table systems.
Schmalz vacuum blocks for grid tables enable simple and flexible use; without complex installation. The non-slip fixings enable secure clamping of the workpieces even with high processing forces. This makes them ideal for complex five-axis applications without a wear plate.
Choose your option

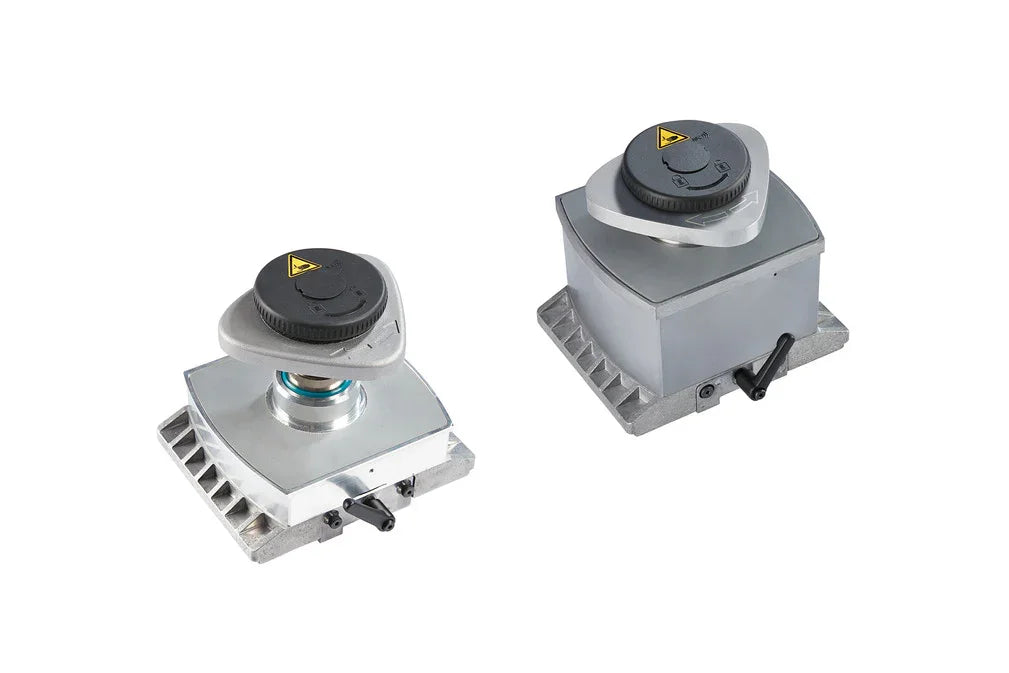

Clamping Equipment for Manual Work
Clamping for Woodworking
Vacuum clamping technology for wood processing is essential for efficiently setting up console table, grid table, nesting table and flat table systems.
The vacuum clamping system Multi-Clamp is the perfect tool for quick and flexible clamping of small and medium-sized workpieces. They can be fixed in any position and processed all-round. The Multi-Clamp is portable and can be used in a variety of industrial, workshop and building-site contexts.
Choose your option
Clamping Equipment for Narrow Workpieces
Clamping for Woodworking
Vacuum clamping technology for wood processing is essential for efficiently setting up console table, grid table, nesting table and flat table systems.
Very narrow and curved parts can be clamped easily and reliably with mechanical clamps and Adapter-Plates from Schmalz. Narrow suction surfaces enable the precise positioning of the vacuum block along the workpiece contours, holding the workpiece in place. The workpiece is mechanically clamped firmly in place using the clamp.
Choose your option
Clamping Equipment for Nesting Table Systems
Clamping for Woodworking
Vacuum clamping technology for wood processing is essential for efficiently setting up console table, grid table, nesting table and flat table systems.
Vacuum systems for use directly on the MDF wear plate of a CNC machining center with a nesting machine table.
Choose your option
Clamping Equipment for Systems from Biesse
Clamping for Woodworking
Vacuum clamping technology for wood processing is essential for efficiently setting up console table, grid table, nesting table and flat table systems.
Whether using a 1-circuit or 2-circuit system, panel processing or frame production – console vacuum blocks from Schmalz can be positioned precisely and are quick and easy to replace when changing the order.
Choose your option
Compact Ejectors
Vacuum Generators
Vacuum generators provide the required vacuum. The vacuum is generated either pneumatically (ejectors) or electrically (pumps, blowers).
In addition to the functions of a basic ejector, compact ejectors are equipped with a suction valve, a blow off valve, a vacuum switch and a filter.
Choose your option

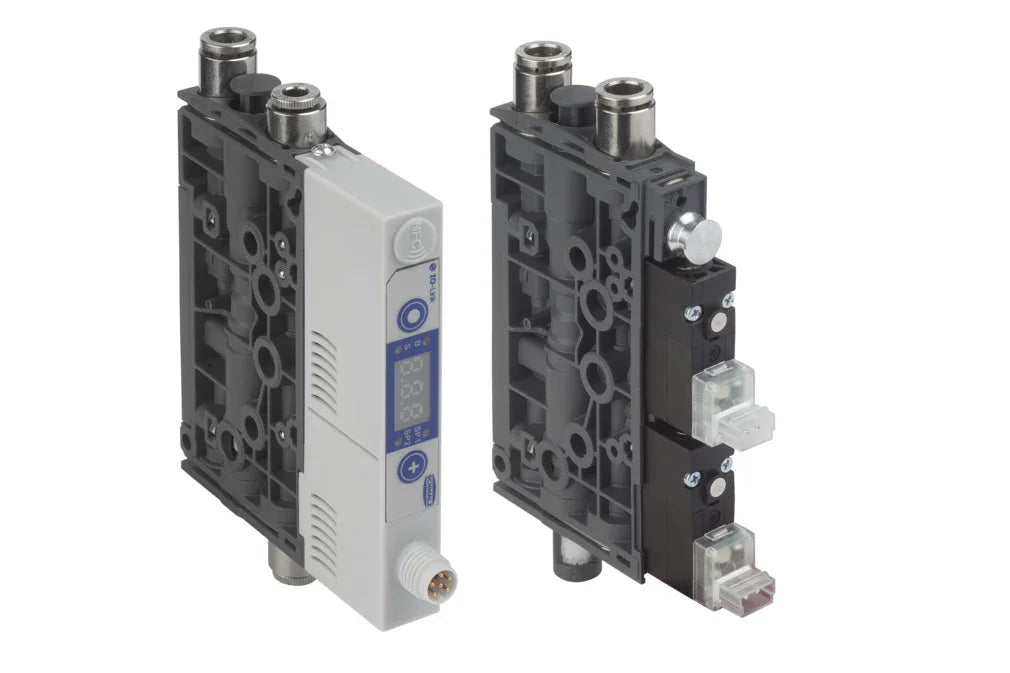

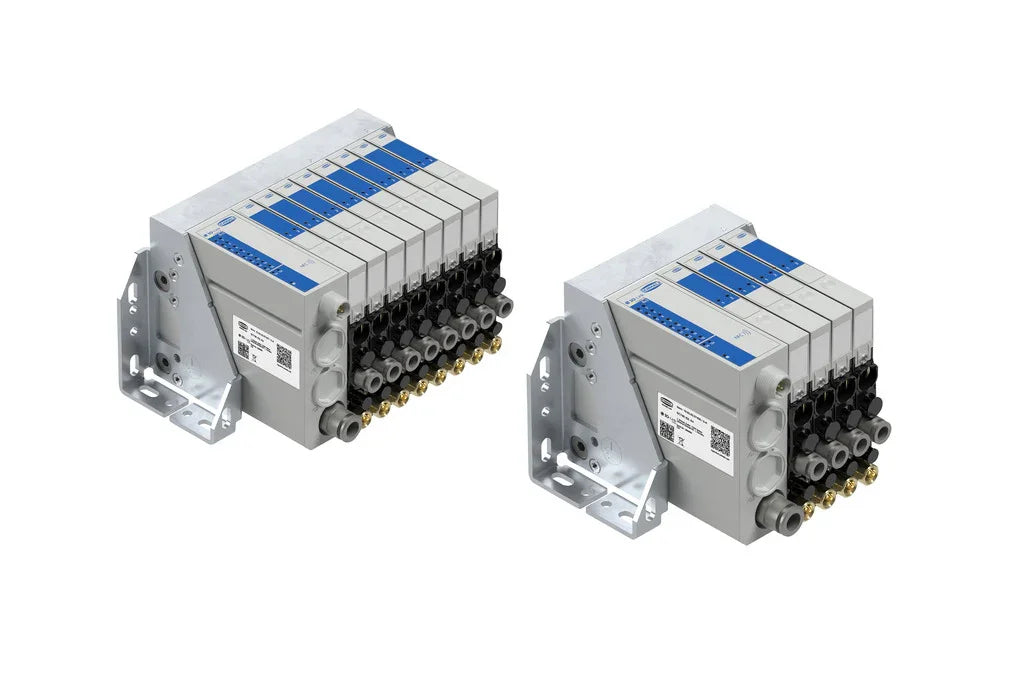

Compact Terminals
Vacuum Generators
Vacuum generators provide the required vacuum. The vacuum is generated either pneumatically (ejectors) or electrically (pumps, blowers).
Compact unit with multiple vacuum generators for the simultaneous and individual handling of different parts using only one vacuum system.
Choose your option
Compact Valves
Valve Technology
Valves are used to control the vacuum as well as the compressed air. The right valves can increase both the process reliability and the cost-effectiveness of the vacuum system.

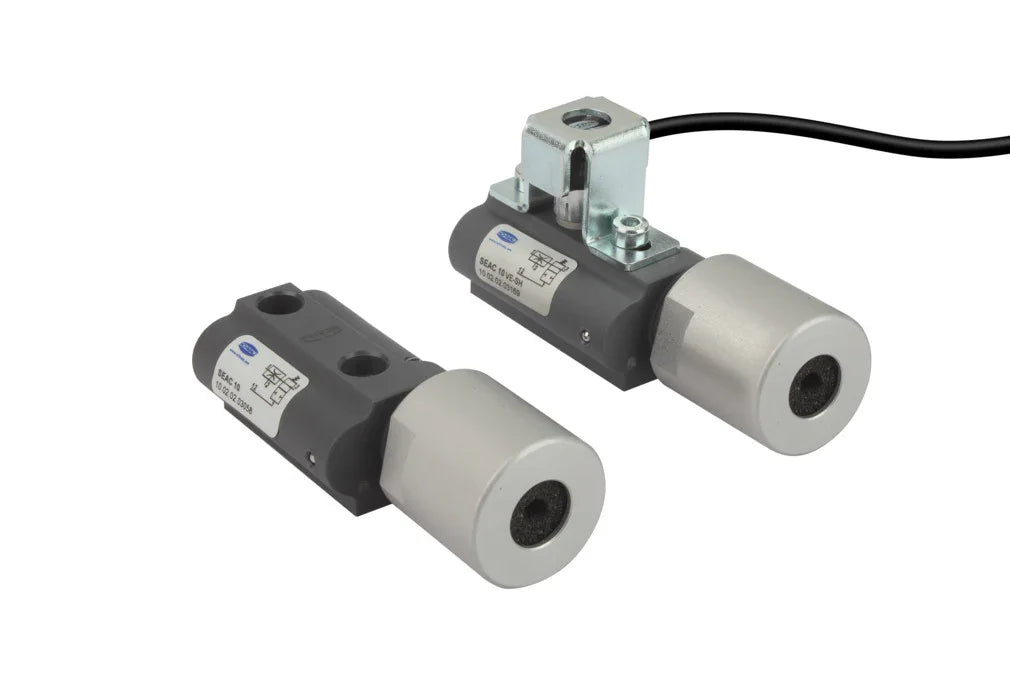

For the control and monitoring of a vacuum system, compact valves are used which are controlled via electrical switching signals. Important process data is transmitted to the control system via an integrated sensor unit.
Choose your option

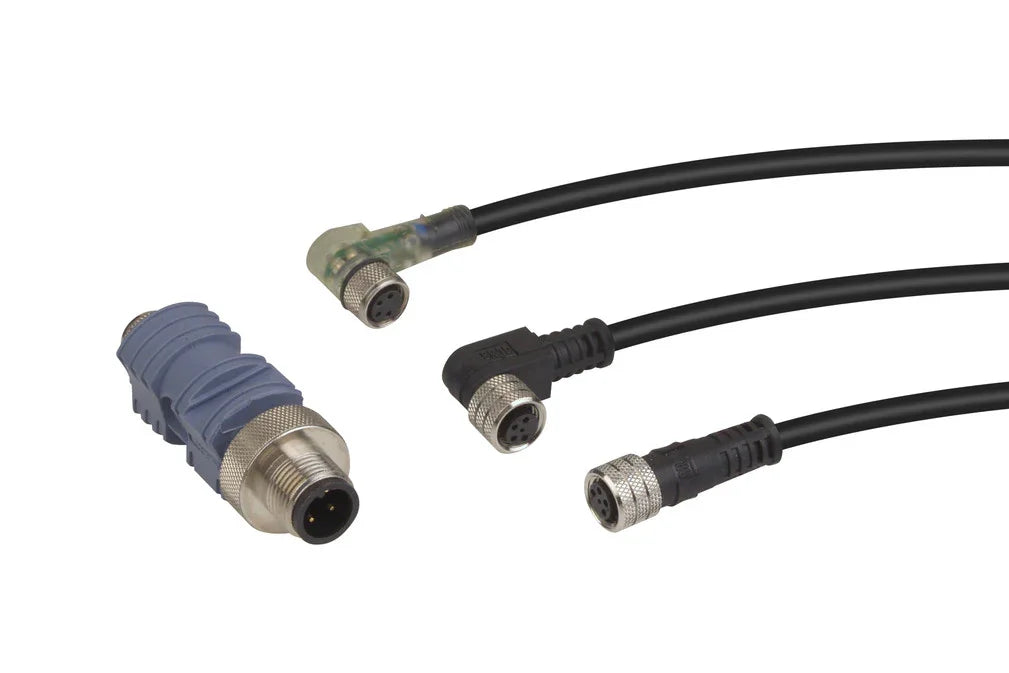

Connections and Adapters for Vacuum Switches
Switches and System Monitoring
Devices for system monitoring are crucial to ensure the safe operation of a vacuum system. Schmalz offers a wide range of switches, measuring and control devices, as well as warning devices.
The appropriate electrical connection cables and adapters for the respective switch types are available here. The wide range ensures adaptation to different requirements and local standards.
Choose your option

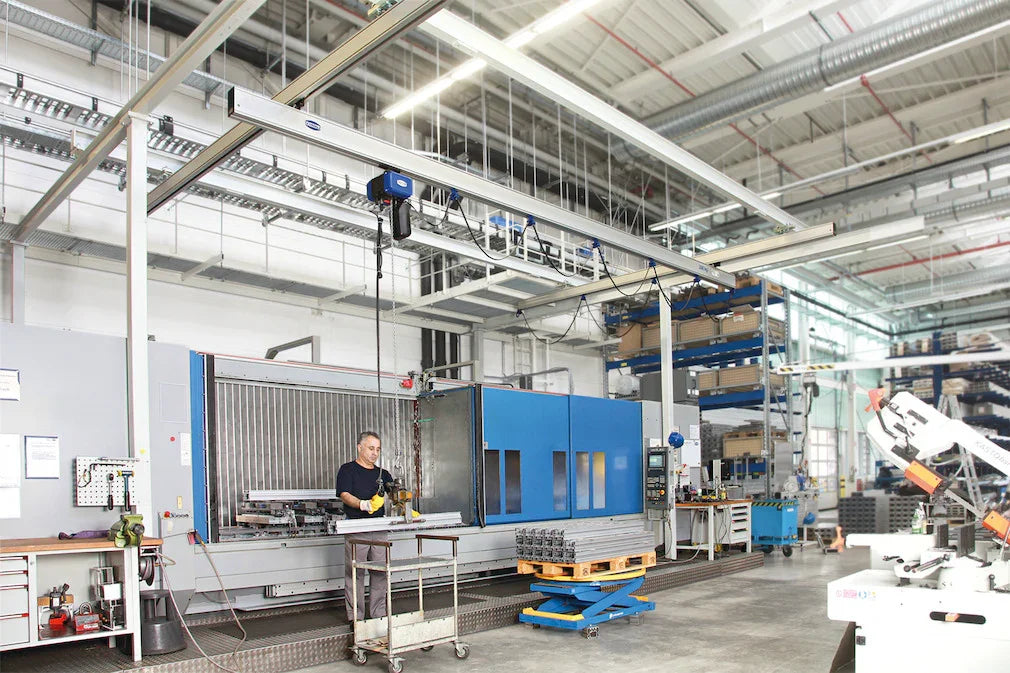

Crane Systems and Jib Cranes
Vacuum Lifters and Crane Systems
Vacuum lifters from Schmalz are intuitive to operate and versatile. The portfolio includes vacuum tube lifters for dynamic transfer of goods with high cycle frequency and chain hoist-based vacuum lifting devices for particularly heavy loads. Rope balancers are ideal aids for sensitive, precise positioning of loads. As a supplement to the lifting devices, Schmalz offers an extensive range of responsive, hand-operated cranes. They can be flexibly integrated into any infrastructure.

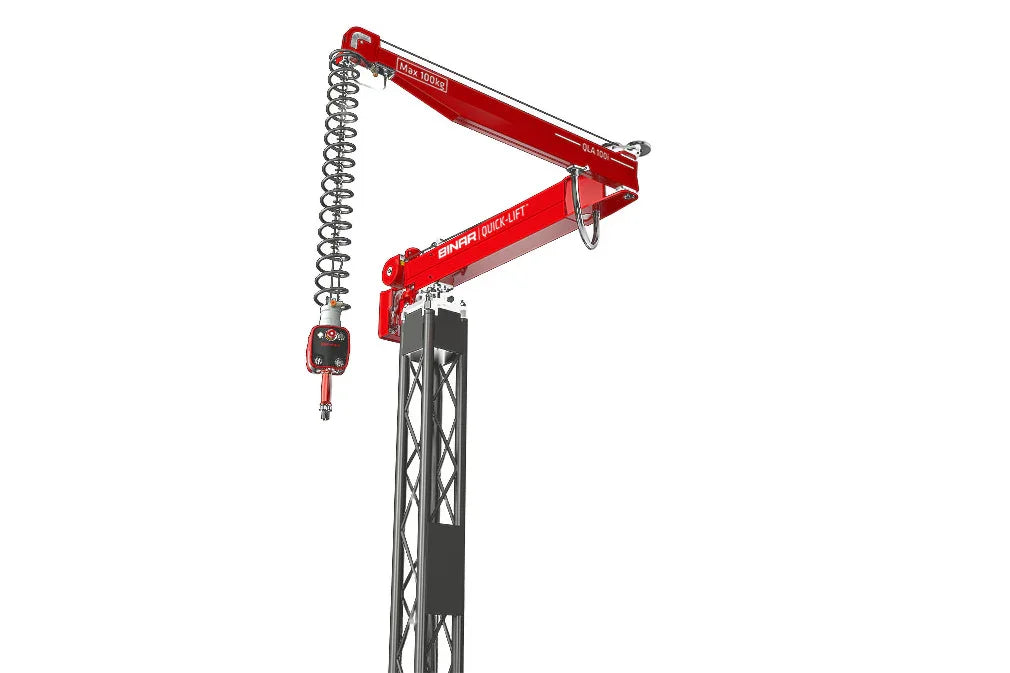

Aluminum Crane Systems and Jib Cranes that are Designed Specifically for Your Vacuum Lifters
Choose your option

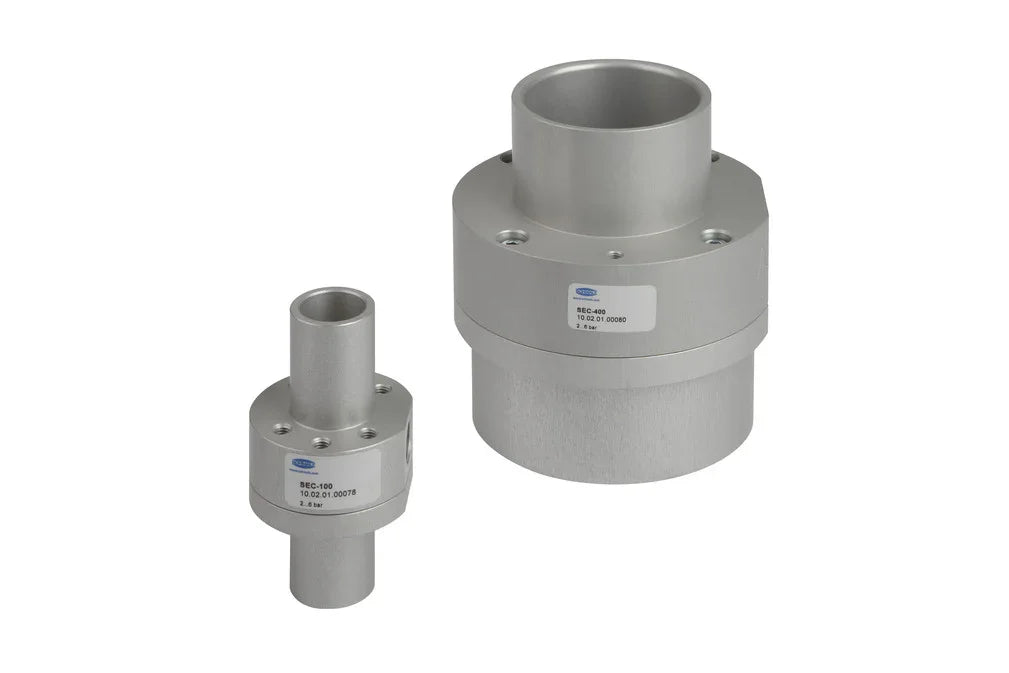

Decentralized Ejectors
Vacuum Generators
Vacuum generators provide the required vacuum. The vacuum is generated either pneumatically (ejectors) or electrically (pumps, blowers).
These ejectors are very different to other series due to their design. In addition to this, ejectors with active blow off function, blow off system and atmospheric ventilation make decentralized vacuum generation directly on the suction cup possible. These ejectors are known for quick lifting and depositing.
Choose your option
Ejector Modules
Vacuum Generators
Vacuum generators provide the required vacuum. The vacuum is generated either pneumatically (ejectors) or electrically (pumps, blowers).
An ejector module with efficient eco-nozzle technology for direct integration in existing machine designs. The ejector module can be installed directly on the suction cup due to the minimal space required and low weight. The resistance to dirt and the one piece nozzle fitting allow for long service intervals as well as simple, quick and tool-free cleaning.
Choose your option
Electric Rope Balancers
Vacuum Lifters and Crane Systems
Vacuum lifters from Schmalz are intuitive to operate and versatile. The portfolio includes vacuum tube lifters for dynamic transfer of goods with high cycle frequency and chain hoist-based vacuum lifting devices for particularly heavy loads. Rope balancers are ideal aids for sensitive, precise positioning of loads. As a supplement to the lifting devices, Schmalz offers an extensive range of responsive, hand-operated cranes. They can be flexibly integrated into any infrastructure.
Rope balancers are ideal as support for sensitive and precise lifting operations. The sensory detection of the manual force on the control handle enables intuitive control both on the control handle and directly on the workpiece. The load is lifted by a rope. An electromotive roller provides support in the movement by winding and unwinding the rope.
Choose your option
Electrical Vacuum Generator ECBPi MATCH
End-of-Arm Ecosystem MATCH
MATCH is the appropriate name for the new multifunctional end-of-arm platform for robotics from the two handling specialists Schmalz and Zimmer Group. Equipped with an extensive function portfolio and universal communication interfaces, MATCH is compatible with any lightweight robot, cobot and with all conventional 6-axis robots on the market.

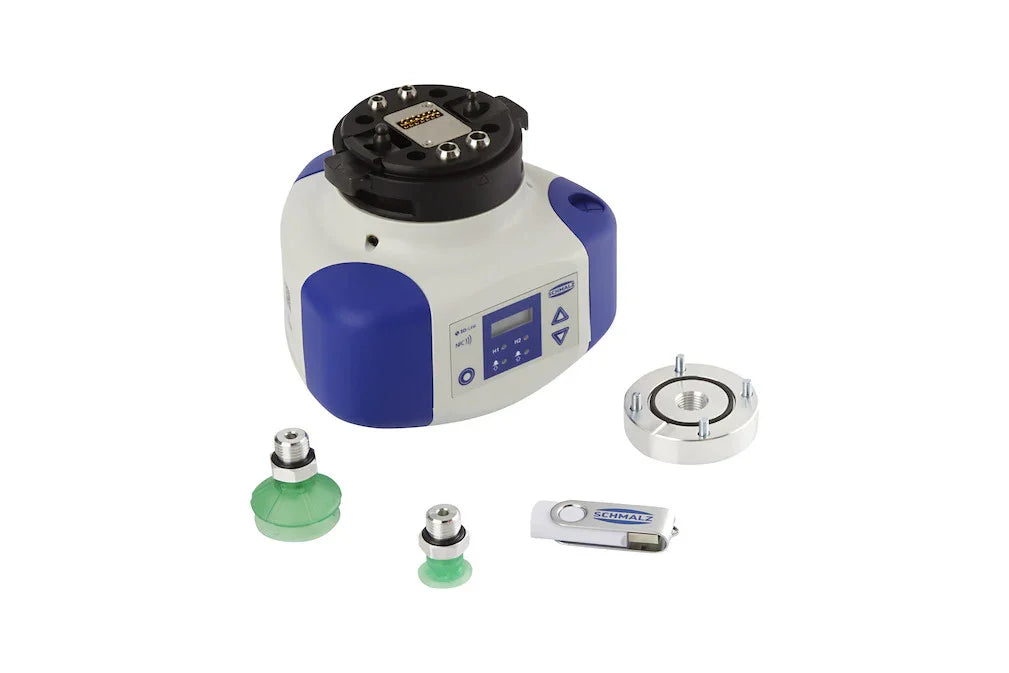

Ready-to-connect handling set for easy assembly and commissioning (plug & work)
Choose your option
Electrical Vacuum Generator ECBPMi MATCH
End-of-Arm Ecosystem MATCH
MATCH is the appropriate name for the new multifunctional end-of-arm platform for robotics from the two handling specialists Schmalz and Zimmer Group. Equipped with an extensive function portfolio and universal communication interfaces, MATCH is compatible with any lightweight robot, cobot and with all conventional 6-axis robots on the market.
Ready-to-connect handling set for easy assembly and commissioning (plug & work)
Choose your option
Electronic Vacuum and Pressure Switches
Switches and System Monitoring
Devices for system monitoring are crucial to ensure the safe operation of a vacuum system. Schmalz offers a wide range of switches, measuring and control devices, as well as warning devices.

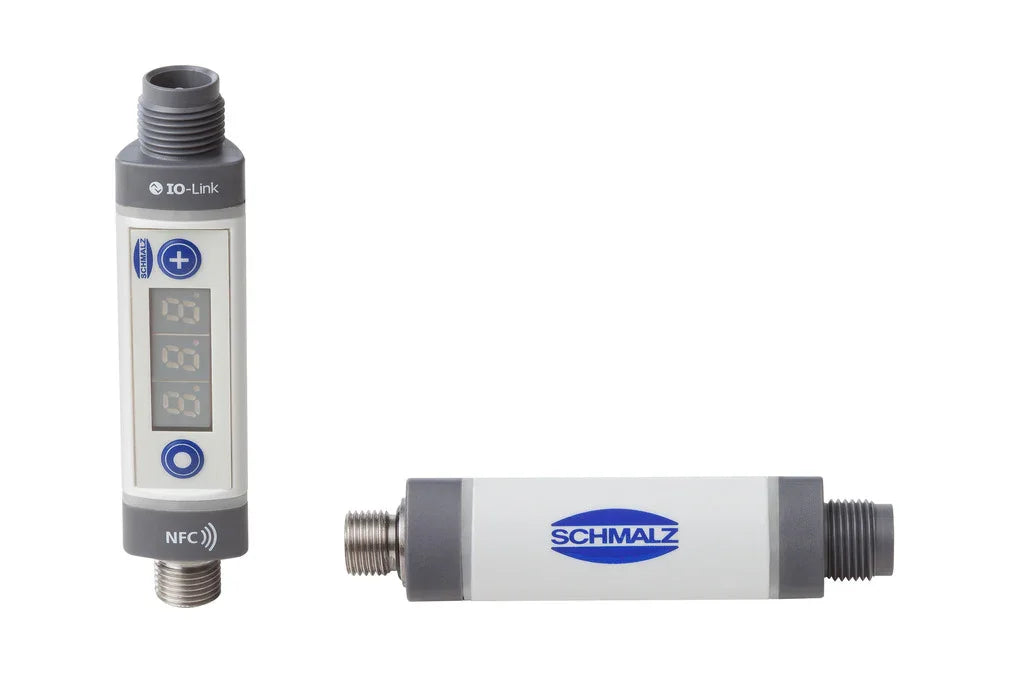

Vacuum switches ensure the safe operation of a vacuum circuit. With the electronic design, the existing vacuum is measured via a sensor and issues an analog or digital switching signal.
Choose your option
Feed Ejectors
Special Grippers
Special grippers can be used for applications in which regular suction cups cannot generate a vacuum. Schmalz offers a variety of special grippers with various shapes, sizes and principles of operation.
A feature of the feed ejectors is their high suction flow which makes them ideal, in particular, for transporting bulk goods.
Choose your option
Finger Grippers
Area Gripping Systems and End Effectors
Area gripping systems and end effectors are gripping systems that can be attached directly on the robot.
Finger gripper for direct use with food as well as for pick & place applications.
Choose your option
Flat Suction Cups (Oval)
Vacuum Suction Cups
Schmalz product range includes a variety of suction cups with various shapes, sizes and materials, providing the right suction cup for every application. Suction cups consist of a elastomer part and a connection nipple. Please call if you require help making a selection.
Flat suction cups with an oval shape are designed for long and narrow workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
Choose your option
Flat Suction Cups (Round)
Vacuum Suction Cups
Schmalz product range includes a variety of suction cups with various shapes, sizes and materials, providing the right suction cup for every application. Suction cups consist of a elastomer part and a connection nipple. Please call if you require help making a selection.
Flat suction cups with a round shape are particularly suited for handling of flat workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
Choose your option
Flat Table Systems for Glass Processing
Flat Table Systems for Glass Processing
Schmalz clamping solutions ensure flexible and efficient production processes in glass working. Suction cups with special friction pads are wear resistant and guarantee precise results, even in challenging operating conditions. Schmalz developed the Quick-Change System SQC especially for machine tables with screw-attachment suction cups. The quick-change suction cups offer minimal setup times and maximum flexibility.
Schmalz clamping solutions enable the quick and uncomplicated setup of CNC machining centers for glass processing with flat table. First the vacuum blocks and then the workpiece are fixed for machine processing via two independent vacuum circuits.
Choose your option
Flexibilization of CNC Machining Centers
Clamping for Woodworking
Vacuum clamping technology for wood processing is essential for efficiently setting up console table, grid table, nesting table and flat table systems.
The vacuum clamping system Innospann enables every CNC machining center to be retrofitted independently of manufacturer and type. Modernization facilitates quick and flexible retrofitting following frequent product changes - for efficient manufacturing processes starting from one-piece production. Schmalz thus provides an economic alternative to investment in a new machine.
Choose your option

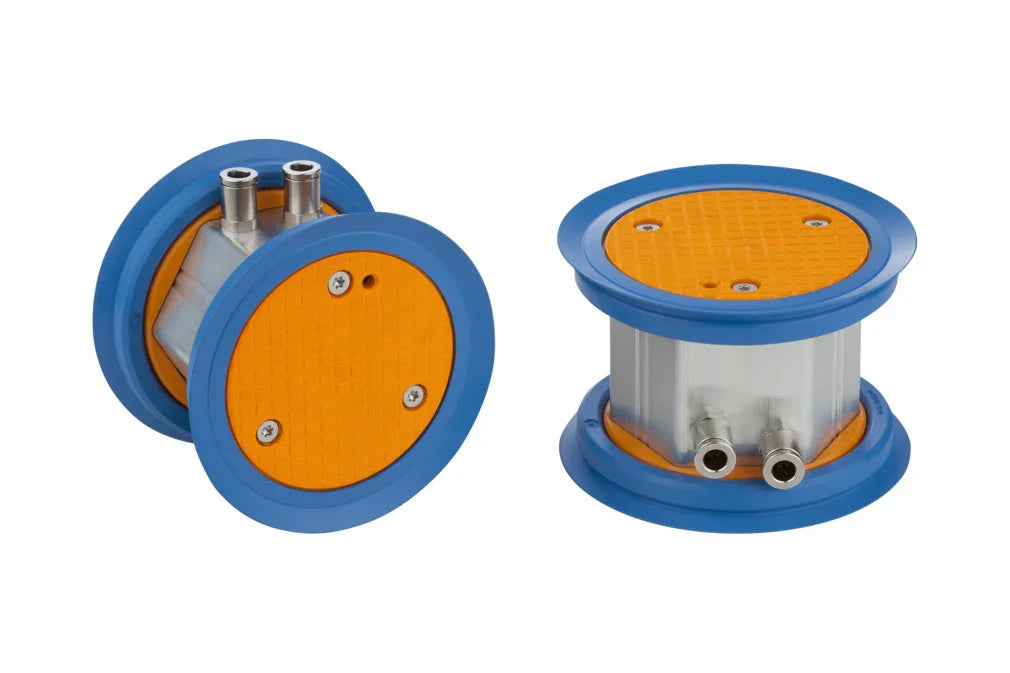

Floating Suction Cups
Special Grippers
Special grippers can be used for applications in which regular suction cups cannot generate a vacuum. Schmalz offers a variety of special grippers with various shapes, sizes and principles of operation.
Floating suction cups function according to the Bernoulli principle and enable low-contact handling of thin and sensitive workpieces such as plastic films, paper or solar cells. The floating suction cup generates an air cushion on which the workpiece “floats”. Leakages are compensated for with the help of a high flow rate in order that porous workpieces can also be handled and separated.
Choose your option
Flow Grippers
Special Grippers
Special grippers can be used for applications in which regular suction cups cannot generate a vacuum. Schmalz offers a variety of special grippers with various shapes, sizes and principles of operation.
Besides the handling of composite textiles, these grippers are ideally suited to extremely thin, sensitive plastic films, thin glass and blank printed circuit boards.
