AAA Differential Controlled Air Valve D16PG
AAA Products International - Part Number: D16PG
| Subplate Mounted 1 1/2" Flow | 2-position, double differential pilot, friction positioned. Spool stays in shifted position when buttons are released. | Spool Configuration: Float center, port 2 is connected to port 3, port 4 is connected to port 5, port 1 is blocked. | Valve Options: No options selected. | Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
Additional options and combinations are available - Please inquire.
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
Choisissez votre option
AAA Differential Controlled Air Valve D2
AAA Products International - Part Number: D2
| Side Ported 1/4" NPTF | 2-position, double differential pilot, friction positioned. Spool stays in shifted position when buttons are released. | Spool Configuration: Closed center, all ports are blocked in the center position. | Valve Options: No options selected. | Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
Additional options and combinations are available - Please inquire.
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
Choisissez votre option
AAA Differential Controlled Air Valve D16PD
AAA Products International - Part Number: D16PD
| Subplate Mounted 1 1/2" Flow | 2-position, double differential pilot, friction positioned. Spool stays in shifted position when buttons are released. | Spool Configuration: Regenerative center, ports 2 & 4 are connectect to port 1, ports 3 & 5 are blocked. | Valve Options: No options selected. | Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
Additional options and combinations are available - Please inquire.
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
Choisissez votre option

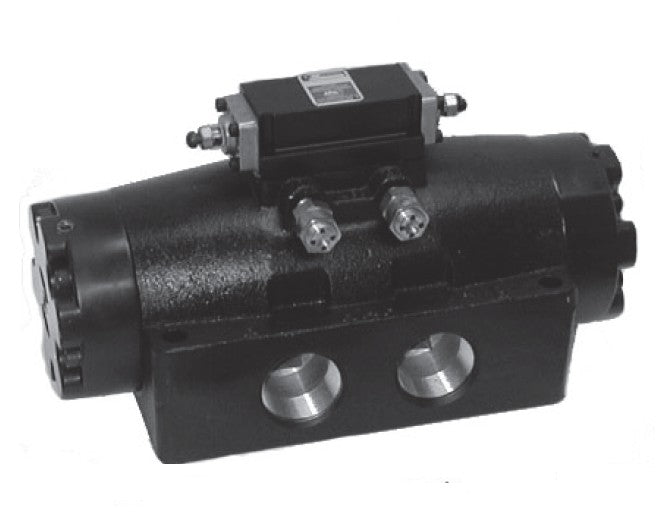

AAA Differential Controlled Air Valve D16P
AAA Products International - Part Number: D16P
| Subplate Mounted 1 1/2" Flow | 2-position, double differential pilot, friction positioned. Spool stays in shifted position when buttons are released. | Spool Configuration: Closed center, all ports are blocked in the center position. | Valve Options: No options selected. | Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
Additional options and combinations are available - Please inquire.
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
Choisissez votre option
AAA Differential Controlled Air Valve D12
AAA Products International - Part Number: D12
| Side Ported 1 1/2" NPTF | 2-position, double differential pilot, friction positioned. Spool stays in shifted position when buttons are released. | Spool Configuration: Closed center, all ports are blocked in the center position. | Valve Options: No options selected. | Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
Additional options and combinations are available - Please inquire.
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
Choisissez votre option
AAA Differential Controlled Air Valve D12G
AAA Products International - Part Number: D12G
| Side Ported 1 1/2" NPTF | 2-position, double differential pilot, friction positioned. Spool stays in shifted position when buttons are released. | Spool Configuration: Float center, port 2 is connected to port 3, port 4 is connected to port 5, port 1 is blocked. | Valve Options: No options selected. | Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
Additional options and combinations are available - Please inquire.
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
Choisissez votre option
AAA Differential Controlled Air Valve D12D
AAA Products International - Part Number: D12D
| Side Ported 1 1/2" NPTF | 2-position, double differential pilot, friction positioned. Spool stays in shifted position when buttons are released. | Spool Configuration: Regenerative center, ports 2 & 4 are connectect to port 1, ports 3 & 5 are blocked. | Valve Options: No options selected. | Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
Additional options and combinations are available - Please inquire.
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
