AAA Remote Pilot Controlled Air Valve RY12
AAA Products International - Part Number: RY12
Side Ported 1 1/2" NPTF - | 3-position, spring centered. Spool returns to center position when pilot pressure is removed. | Spool Configuration: (Normally on 3-position valves, 2-position valves use a closed center spool): Closed center, all ports are blocked in the center position. | Valve Options: No options selected. | Valve O-Rings: Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
Choisissez votre option

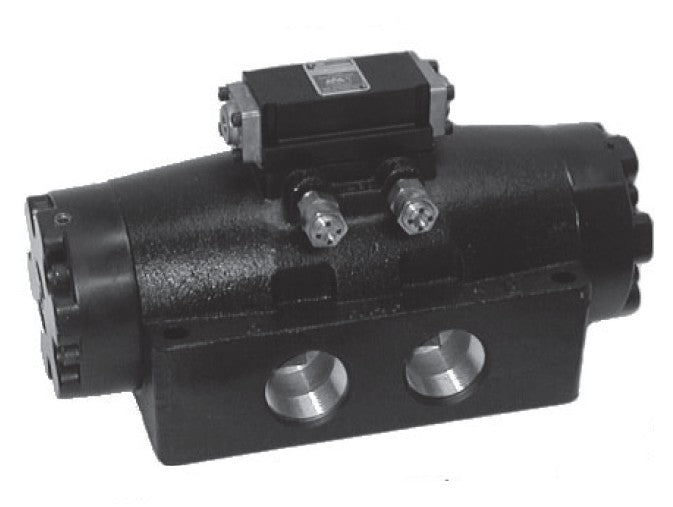

AAA Remote Pilot Controlled Air Valve RY16P
AAA Products International - Part Number: RY16P
Subplate Mounted 1 1/2" Flow - | 3-position, spring centered. Spool returns to center position when pilot pressure is removed. | Spool Configuration: (Normally on 3-position valves, 2-position valves use a closed center spool): Closed center, all ports are blocked in the center position. | Valve Options: No options selected. | Valve O-Rings: Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
Choisissez votre option
AAA Remote Pilot Controlled Air Valve RY16PD
AAA Products International - Part Number: RY16PD
Subplate Mounted 1 1/2" Flow - | 3-position, spring centered. Spool returns to center position when pilot pressure is removed. | Spool Configuration: (Normally on 3-position valves, 2-position valves use a closed center spool): Regenerative center, ports 2 & 4 are connected to port 1, ports 3 & 5 are blocked. | Valve Options: No options selected. | Valve O-Rings: Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |
If applicable, please confirm your required voltage:
24 volts, 60 Hz | 120 volts, 60 Hz | 240 volts, 60 Hz | 6 volts DC | 12 volts DC | 24 volts DC
Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
