Hight flow rate brass, FNPT threaded, in-line spring loaded check valve.
• Pressure rating: size 1/4”-2” 400 WOG / 2 1/2”-4” 175 WOG.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• ANSI B1.20.1 connections.
• Flow pattern to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure best resistance in any condition.
• Not to be used for drinking water.
100002: NBR for water, oils and general purpose - size 3/8” to 4”.
100003: with FKM Viton® seal for fuels and hydrocarbons. Max working temperature 366°F/125 psi steam - size 3/8” to 4”.

Hight flow rate brass, FNPT threaded, in-line spring loaded check valve.
• Pressure rating: size 1/4”-2” 400 WOG / 2 1/2”-4” 175 WOG.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• ANSI B1.20.1 connections.
• Flow pattern to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure best resistance in any condition.
• Not to be used for drinking water.
100002: NBR for water, oils and general purpose - size 3/8” to 4”.
100003: with FKM Viton® seal for fuels and hydrocarbons. Max working temperature 366°F/125 psi steam - size 3/8” to 4”.

High flow rate, lead free brass, FNPT threaded, in-line spring loaded check valve.
• Pressure rating size 1/4” up to 2” 400 WOG, 2 1/2” - 4” 175 WOG.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• ANSI B1.20.1 connections.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Flow pattern to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure best resistance in any condition.
100012 LF: size 1/4” to 4”.

Unibody check valve, FNPT threaded, in-line spring loaded check valve.
• Pressure rating size 400 WOG.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• ANSI B1.20.1 connections.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Flow pattern to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure best resistance in any condition.
100022 LF: size 1/2” to 2”.

High flow rate, brass FNPT threaded, spring loaded foot valve.
• Pressure rating: sizes 3/8”-2” 400 WOG - 2 1/2”-4” 175 WOG.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• ANSI B1.20.1 connections.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Flow pattern to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure best resistance in any condition.
• Stainless steel 1000 micron strainer.
• Not to be used for drinking water.
100102: size 3/8” to 4”.

High flow rate, lead free brass, FNPT threaded, in-line spring loaded check valve.
• Pressure rating sizes 3/8”-2” 400 WOG - 2 1/2”- 4” 175 WOG.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• ANSI B1.20.1 connections.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Flow pattern to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure best resistance in any condition.
• Stainless steel 1000 micron strainer.
100112 LF: size 3/8” to 4”.

High flow rate, lead free brass, EURO-PRESS connections, in-line spring loaded check valve.
• Pressure rating size 1/2”- 2” 400 WOG.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Flow profile designed to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure the best corrosion resistance for any water application.
• Press alert O-rings.
100612 LF: size 1/2” to 2”.

Unibody check valve, EUROPRESS connections, in-line spring loaded check valve.
• Pressure rating size 200 WOG.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Flow pattern to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure best resistance in any condition.
100622 LF: size 1/2” to 2”.

High flow rate, lead free brass, solder ends, in-line spring loaded check valve.
• Pressure rating size 1/2”- 2” 400 WOG.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• ANSI B16.18 connections.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Flow profile designed to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure the best resistance in any condition.
• Traditional sweating procedures recommended.
100712 LF: size 1/2” to 2”.

Unibody check valve, solder ends, in-line spring loaded check valve.
• Pressure rating 400 WOG.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• ANSI B16.18 connections.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Flow pattern to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure best resistance in any condition.
100722 LF: size 1/2” to 2”.

Lead free brass ball valve with EURO-PRESS connections full port.
• Working pressure 200 psi.
• Made in lead free dezincification resistant brass (LF-DZR).
• Temperature range -4°F to 250°F.
• Drip fit O-rings.
• No soldered-In end pieces.
• Blow-out proof stem, SLT coated LF brass.
• PTFE seats and double O-ring stem, adjustable packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
1570 LF: size 1/2” to 2”.

Lead free brass ball valve with EURO-PRESS connections, full port.
• Working pressure 200 psi.
• Temperature range -4°F to 250°F
• High tensile strength forged lead-free brass.
• Blow-out proof stem, STL coated LF brass ball.
• PTFE seats and double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
• Handle-polyamide thermal plastic T style.
• Vapor barrier design, ideal for all insulated heating/chilled water piping.
1570 LFPT: size 1/2” to 2”.

Lead free brass ball valve with solder ends, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B16.18 connections.
• Blow-out proof stem, SLT coated LF brass ball.
• PTFE seats and double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
1615 LF: LEVER HANDLE - size 1/2” to 4”.
1625 LF: T-HANDLE - size 1/2” to 1”.

Brass ball valve, FNPT threaded, full port, with latch lock handle.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball.
• PTFE seats and double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Valve to be used in fully open or fully closed position.
161L: LOCK HANDLE - size 1/2” to 4”.
For sizes 1/4”, 3/8” see 171L.

Lead free brass ball valve, FNPT threaded, full port, with latch lock handle.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, SLT coated LF brass ball.
• PTFE seats, seals, and thrust washer.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
161L LF: LOCK HANDLE - size 1/2” to 4”.

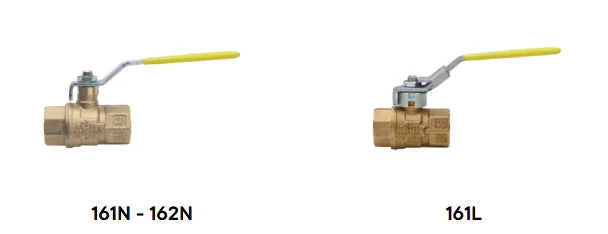

Brass ball valve, FNPT threaded, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball.
• PTFE seats and double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Valve to be used in fully open or fully closed position.
161N: LEVER HANDLE - size 1/2” to 4”.
162N: T-HANDLE - size 1/2” to 1”.
For sizes 1/4”, 3/8” see 171N.

Lead free brass ball valve, FNPT threaded, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, SLT coated LF brass ball.
• PTFE seats and double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
161N LF: LEVER HANDLE - size 1/2” to 4”.
162N LF: T- HANDLE - size 1/2” to 1”.
Sizes 1/4” and 3/8” see 171N LF.

Lead free brass ball valve, FNPT threaded, full port.
• Pressure rating 600 WOG-150WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 thread depths.
• High tensile strength forged lead-free brass.
• Blow-out proof stem, coated LF brass ball.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
• Ultimate bubble tight dual O-ring stem seals.
• Handle-polyamide thermal plastic T style.
• Vapor barrier design, ideal for all insulated heating/chilled water piping.
161N LFPT: size 1/2” to 2”.

Lead free brass ball valve with XLC EURO-PRESS connections full port.
• Test pressure rating 300 psi up to 3” and 200 psi for the 4”, working pressure 200 psi for all sizes.
• Temperature range -4°F to 250°F.
• Made in lead free dezincification resistant brass (LF-DZR).
• Blow-out proof stem, stainless steel ball.
• PTFE seats and double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
1670XLC LF: size 2 1/2” to 4”.

Brass ball valve with solder ends, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to +366°F.
• ANSI B16.18 connections.
• Blow-out proof stem, chrome plated brass ball.
• PTFE seats, seals, and thrust washer.
• Adjustable stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Valve to be used in fully open or fully closed position.
1715: LEVER HANDLE - size 1/2” to 4”.
1725: T-HANDLE - size 1/2” to 1”.

Lead free brass ball valve with solder ends, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B16.18 connections.
• Blow-out proof stem, STL coated LF brass ball.
• PTFE seats, seals, and thrust washer.
• Adjustable stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
1715 LF: LEVER HANDLE - size 1/2” to 2”.
1725 LF: T-HANDLE - size 1/2” to 1”.

Brass ball valve, FNPT threaded, full port, with latch lock handle.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball.
• PTFE seats, seals, and thrust washer.
• Adjustable stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Valve to be used in fully open or fully closed position.
171L: LOCK HANDLE - size 1/4” to 4”.
171LCR: CHROME PLATED - size 1/4” to 4”.

Brass ball valve, MNPT X FNPT threaded, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball.
• PTFE seats, seals, and thrust washer.
• Adjustable stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Valve to be used in fully open or fully closed position.
171M: LEVER HANDLE - size 1/4” to 1”.
172M: T-HANDLE - size 1/4” to 1”.
171MCR: CHROME PLATED - size 1/4” to 1”.
171MCRL: CHROME PLATED WITH LOCKING HANDLE - sizes 1/4” to 1”.

Brass ball valve, FNPT threaded, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball.
• PTFE seats, seals, and thrust washer.
• Adjustable stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Valve to be used in fully open or fully closed position.
171N: LEVER HANDLE - size 1/4” to 4”.
172N: T HANDLE - size 1/4” to 1”.
171S: BALL AND STEM IN STAINLESS STEEL AISI 316 - size 1/4” to 4”.
171NCR: CHROME PLATED - size 1/4” to 4”.

Lead free brass ball valve, FNPT threaded, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, STL coated LF brass ball.
• PTFE seats, seals, and thrust washer.
• Adjustable stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
171N LF: LEVER HANDLE - size 1/4” to 2”.
171L LF: LOCKING HANDLE - size 1/4” to 2”.
172N LF: T-HANDLE - size 1/4” to 1”.
171S LF: Ball and stem in stainless steel AISI 316 - size 1/4” to 2”.
For sizes 2 1/2”, 3” and 4” see 161N LF.

Lead free brass ball valve, FNPT threaded, full port.
• Pressure rating 600 WOG-150WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 thread Depths.
• High tensile strength forged lead-free brass.
• Blow-out proof stem, STL coated LF brass ball.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
• Adjustable packing-stem seals-two PTFE, and one O-ring.
• Handle-polyamide thermal plastic T style.
• Vapor barrier design, ideal for all insulated heating/chilled water piping.
171N LFPT: size 1/2” to 2”.

Lead free brass ball valve, FNPT threaded, with ISO 5211 pad for actuator, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, SLT. coated LF brass ball and and double O-ring stem packing.
• PTFE seats with O-ring backing for low operating torque.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
250N LF: size 1/4” to 4”.
253N LF: WITH STAINLESS STEEL BALL AND STEM - size 1/4” to 4”.

Deadman spring lever lead free brass 2-way 2-piece, full port, FNPT threaded.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, SLT. coated LF brass ball and double O-ring stem packing.
• PTFE seats with O-ring backing for low operating torque.
• 100% electronically tested in the open and closed position at 80 psi.
250N LF SRL: size 1/4” to 3”.

Deadman spring ball valve, full port, FNPT threaded.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball ball and and double O-ring stem packing.
• PTFE seats with O-ring backing for low operating torque.
• Adjustable spring return lever.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
250N SRL: size 1/4” to 3”.

Brass ball valve, FNPT threaded, full port with ISO 5211 pad for actuator.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball and and double O-ring stem packing.
• PTFE seats with O-ring backing for low operating torque.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Valve to be used in fully open or fully closed position.
250N: WITH BRASS BALL AND STEM - size 1/4” to 4”.
253N: WITH STAINLESS STEEL BALL AND STEM - size 1/4” to 2”.

Lead free brass ball valve, FNPT threaded, with ISO 5211 pad for actuator, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, SLT. coated LF brass ball and and double O-ring stem packing.
• PTFE seats with O-ring backing for low operating torque.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
250N LF: size 1/4” to 4”.
253N LF: WITH STAINLESS STEEL BALL AND STEM - size 1/4” to 4”.

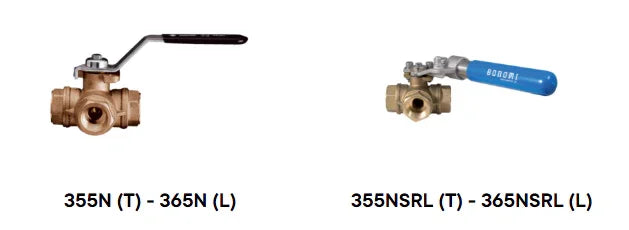

3-way brass ball valve with ISO 5211 pad for actuator, standard port, FNPT.
• Pressure rating 400 WOG-100 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball anddouble O-ring stem packing.
• PTFE seats with O-ring backing for low operating torque.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Four seat design for sealing between pressurized ports.
355N: LEVER HANDLE - size 1/4” to 3”, “T” flow pattern.
365N: LEVER HANDLE - size 1/4” to 3”, “L” flow pattern.
