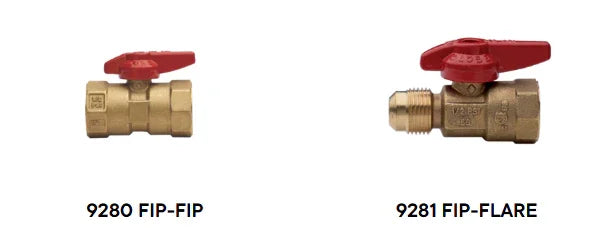

9281 FIP-FLARE
ROBINET À GAZ
ROBINET À BILLE DE GAZ
Vanne à boisseau sphérique à gaz de conception monocoque, port standard, filetage FIP x FLARE.
Selon:
• CAN 1-9.1 - EXIGENCES AMÉRICAINES 3-88.
• CGA CR 91-002 - ANSI Z21.15.
• UL 125 « GAZ LP » - UL 842 - SUJET 258.
• Connexions ANSI B1.20.1.
• Tige anti-éclatement, bille en laiton chromé.
• Sièges en PTFE.
• 100 % testé électroniquement en position ouverte et fermée à 80 psi.
• Vanne à utiliser en position complètement ouverte ou complètement fermée.
9281 : taille 3/8” jusqu’à 1/2”.
CORPS D'UNE SEULE PIÈCE
Choisissez votre option
9280 FIP-FIP
ROBINET À GAZ
ROBINET À BILLE DE GAZ
Vanne à boisseau sphérique à gaz de conception monocoque, port standard, filetage FIP x FIP.
Selon:
• CAN 1-9.1 - EXIGENCES AMÉRICAINES 3-88.
• CGA CR 91-002 - ANSI Z21.15
• UL 125 « GAZ LP » - UL 842 - SUJET 258.
• Connexions ANSI B1.20.1.
• Tige anti-éclatement, bille en laiton chromé.
• Sièges en PTFE.
• 100 % testé électroniquement en position ouverte et fermée à 80 psi.
• Vanne à utiliser en position complètement ouverte ou complètement fermée.
9280 : taille 3/8” à 3/4”.
CORPS D'UNE SEULE PIÈCE
