PFA Series
PFA Series
PFA Series

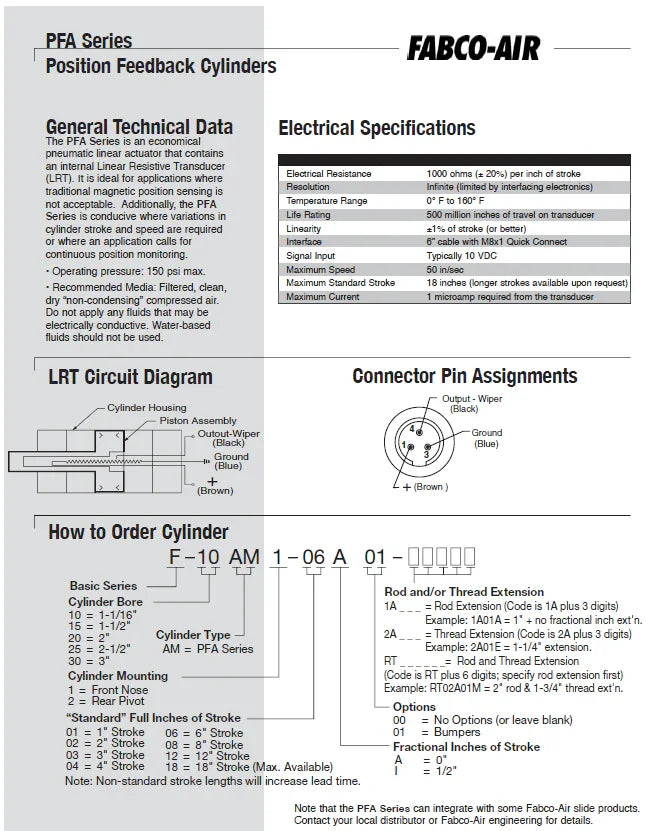

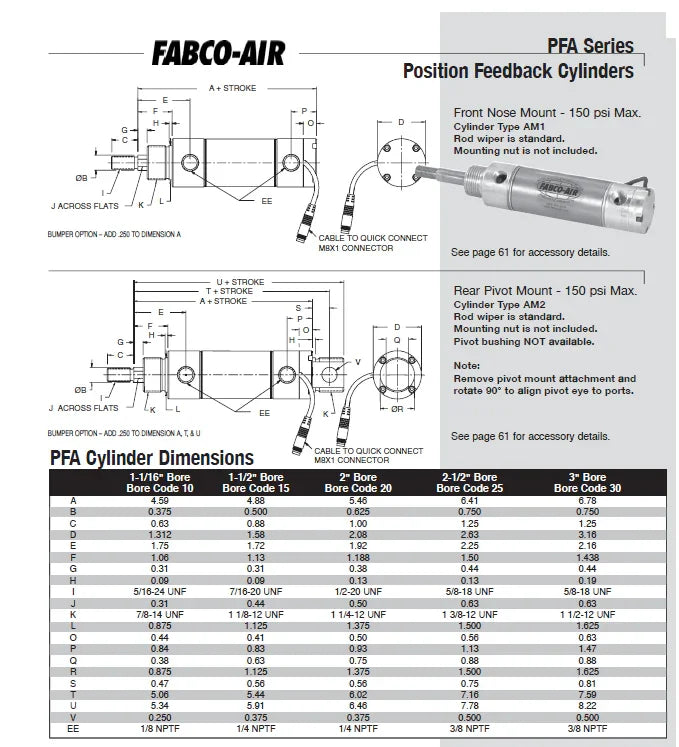

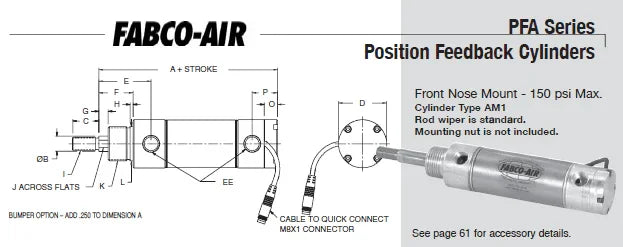

Position Feedback Cylinders
The PFA Series is an economical
pneumatic linear actuator that contains
an internal Linear Resistive Transducer
(LRT). It is ideal for applications where
traditional magnetic position sensing is
not acceptable. Additionally, the PFA
Series is conducive where variations in
cylinder stroke and speed are required
or where an application calls for
continuous position monitoring.
• Operating pressure: 150 psi max.
• Recommended Media: Filtered, clean,
dry “non-condensing” compressed air.
Do not apply any fluids that may be
electrically conductive. Water-based
fluids should not be used.
