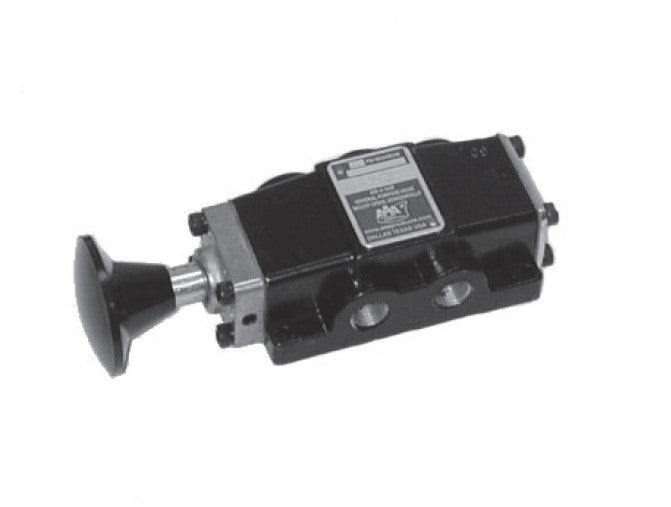

AAA Palm Button Controlled Air Valve KO2E

AAA Products International - Part Number: KO2E

| Side Ported 1/4" NPTF | Spool Configuration: Closed center, all ports are blocked in the center position. | Valve Options: Pin lock. | Valve O-Ring Option: Viton for body styles 2, 3 & 3P, Buna-N for body styles 4, 6, 8, 12, 4P, 8P &16P. |

If applicable, please confirm your required voltage:

Different O-ring materials (only applies to valve body O-rings) are possible for some models: -1 Neoprene for freon (-40°F to 225°F), -2 Silicon (-80°F to 400°F), -3 Viton for most aromatic gases (-20°F to 400°F, 600°F for short time). -4 Butyl Rubber (-60°F to 200°F). -5 Teflon (-250°F to 450°F). -7 Urethane, 70 Durometer (-65°F to 200°F). -9 Buna-N (-40°F to 250°F).
